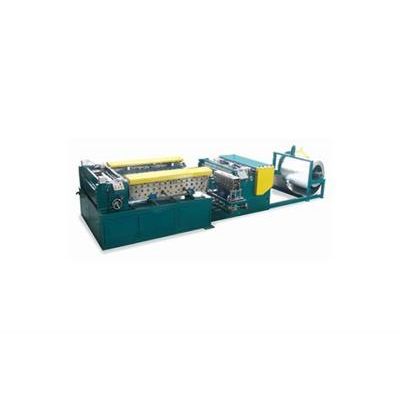

Comifo - Model VI -Auto Duct Line
The world`s new designed auto duct forming machine is now available since Comifo designed the Auto Line VI, which can be put in a 20GP container. Container duct auto line VI with the feature of small size, firm structure and easy for installation, it can be used in the construction site to fulfill the ideal of movable operation and processing.
This auto line consists of decoiler (a special design which is easy to load coils in construction site), straightening, beading, punching, notching, shearing, patented automotion Pittsburgh lock forming (shearing, Pittsburgh lock, right angle lock in one time), duplex TDF flange forming, duplex right angle lock forming (for angle iron), and TDF folding. It can process different ducting of “L”, and “口". Used with the Comifo vertical duct seaming machine and corner inserter, increases production efficiency and saves labor cost.
The construction site used hvac duct forming machine auto line VI is Comifo`s brave innovation and the world’s first container type auto line! It saves the manual work and transportation cost, which can move to different construction sites just by moving the container (No extra installing and testing are needed). Our duct forming machine has gained great popularity ever since its first face show in the market in 2012.
- Electric duplex decoiler: (capacity: 5ton per each) 2set
- Straightening
- no of straightening roller: 6rollers for straightening
- diameter of rollers: φ100
- material of rollers: 45＃thermal refined,chrome plated
- Beading: 1set
- no of beading roller: 2 rollers
- diameter of rollers: φ100
- material of rollers: 45＃thermal refined,chrome plated
- beading shapes
- Cut to length or cut blank for plasma cutting machine
- 1 Produce a full wrap duct with TDF flange and Pittsburgh lock
- 1 Produce a full wrap duct with C cleat (drive cleat) or C/S duct
- All products can be made as “L” shape or “口” (full wrap duct)
- Finished product can be used with whisper-loc seam closer for seaming
Work Flow: decoiler-staightening-beading-notching- punching –cutting-pittsburgh lock forming-coil conveyor-duplex TDF flange forming-duplex C cleat roll forming- hydraulic folding
- Model No.: CAL5-1.2x1300,CAL5-1.2x1600
- Max Coil Width: 4`(1250mm),5`(1550mm)
- Thickness Range: 0.5-1.2mm
- Speed: 0-18m/min
- Shearing Tolerance: ±0.5mm
- Diagonal Tolerance: ±0.5mm
- Min.Order Quantity: 1 Set
- Supply Ability: 10 Sets per Month
- Port: GUANGZHOU PORT,SHENZHEN PORT
- Payment Terms: T/T,L/C
