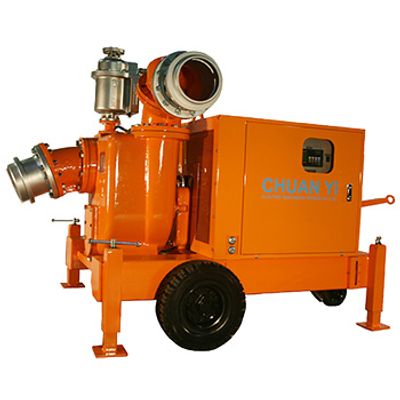

Chuan-Yi-Electric - Model CPM20B -Auto Prime Engine Pumps
Self-priming pumps have a special design vacuum system that can detect water automatically, when there is no water inlet.
Most popular related searches
- The special design chamber can separate water and air. The self prime pump will fill water in few minutes automatically.
- Non-clog design impeller can pass large solid. The self prime engine pump has clean hole for cleaning sediment.
- Engine speed adjustment tool, allow you control the rotational speed.
- Advanced control systems have warning and protective functions for your option.
- The patent aluminum-made quick connection joint is easy to operate and light weight. The rubber pipe can match the connecting joint firmly and closely.
- Light weight and small size, easy to operate and moveable. This pump is applicable to all kinds of emergency pumping.
- Model: CPM20B
- Type: Self-priming pump
- Capacity: 8.4m³ / min
- Rated head: 10 m
- Max. capacity: 10m³ / min
- Max head: 16 m
- Suction diameter: 200 mm
- Discharge diameter: 200 mm
- Rotation speed: 1450 rpm
- Passage solid: 45 mm
- Engine brand: Kubota or Fiat (optional)
- Weight: 1550 KG
