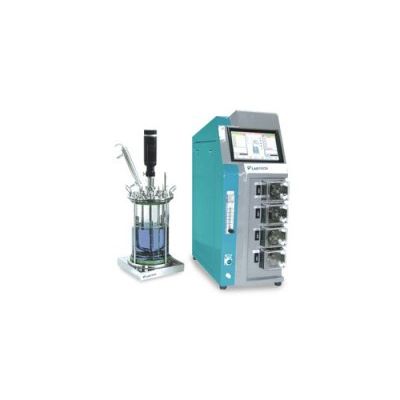

Labtron - Model LAB-A10 -Autoclavable Bioreactor
Autoclavable Bioreactor LAB-A10 is a single vessel type, benchtop laboratory fermentor offering a volume of 0.5 litres. It has been specially designed to serve biotechnological and pharmaceutical research and development.
Most popular related searches
autoclavable bioreactor
peristaltic pump
benchtop laboratory fermenter
air filter cartridge
air filter
bioreactor
dissolved oxygen sensor
filter cartridge
gas mixer
pump controller
- Vessel Total Volume : 0.5 Litres
- Vessel Type : Single Vessel
- Agitation Drive : Top drive motor (mechanical drive)
- Agitation Indication : Monolithic LCD display
- Agitation Range : 50-1,200 rpm
- Agitation Impellers : 2-Rushton turbine impeller, 1-foam breaker
- Temperature Range : Ambient+3°C to 80°C
- Aeration Gas System : 2 or 4 gas mixer
- Aeration Gas Inlet : Ring Sparger with 0.2 µm air filter cartridge
- Exhaust Filter and Condenser : 0.2 µm air filter, SUS 316 Condenser
- pH Sensor : Gel electrode
- pH Range : 2.0-12.0 pH of set point
- DO Sensor : Polarographic electrode
- DO Range : 0-200%
- Antifoam Sensor : Conductivity electrode
- Peristaltic Pump Control : 4 constant speed pumps, one each for acid, base, foam and feed
- Power : 60 W / 150 W
- Power Supply : 220V, 50/60Hz
- Suitable for high density, continuous fermentation
- Automatic fermentation process from start to end
- High resolution, built-in colour touch screen
- Displays temperature, pH, DO, motor speed & peristaltic pump status simultaneously
- Precise control of pH, DO & dead band value of the peristaltic pump
- Easy calibration of pH, DO & foam sensors using graphic calibration mode
- Controllable motor speed via DO mode
- RS-232C interface and wireless communication protocol
- Pt-100 temperature sensor
- PID controlled temperature, pH and DO
Series LAB-A is applicable Microbiology, Tissue culturing, Biotechnology & Pharmaceutical industry.
