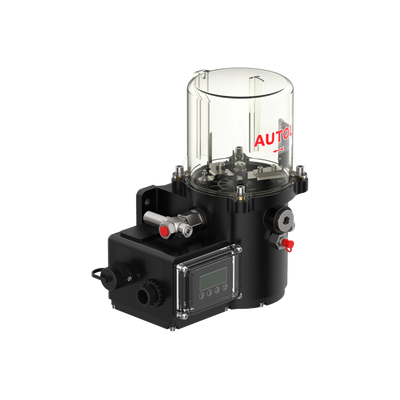

AUTOL - Model ALP811 -Centralized Lubrication Systems
ALP80 series plunger pumps are driven by high-performance DC motors, are internally equipped with worm gear reducers, and can drive up to 3 plungers to work. Pump bodies are made of die-casting aluminum with stable and reliable performance. The oil tank is made of PC transparent material to facilitate observing the oil level. These pumps can be equipped with ECU liquid crystal monitor and low liquid-level alarm device.
Most popular related searches
lubricant system
worm gear reducer
liquid level alarm
plunger pump
worm gearing
liquid monitoring
liquid alarm
electric pump
pump system
internal gear pump
- The series pumps are applicable to the progressive centralized lubrication system, which are mainly used in the loader, wide-body vehicle, bulldozer and other small-sized equipment.
- Note: Please select the low-temperature grease of the same grade reasonably in winter in cold areas.
- Model : ALP811
- Function principle : Electric plunger pump
- Operating temperature : -40℃~70℃
- Oil tank capacity : 1 L & 2 L
- Voltage : DC24V/DC12V
- Operating current : ≤3A
- Number of outlets : 1-3
- Output flow : 1.5 ml/min, 2.5 ml/min & 4.5 ml/min
- Operating pressure : 30MPa
- Applicable grease : NLGI-0#, 1# & 2#
- IP grade : IP69
- Monitor : External/internal layout
- Mounting position : with follower plate: any
- without follower plate: upright
