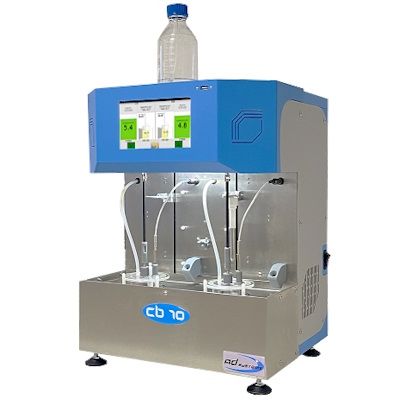

AD Systems - Model CB10 -Automated Corrosion Bath

SHARE

The CB10 revolutionizes corrosion testing by bringing unmatched automation and precision to the analysis of corrosion properties of mineral oils and pipeline cargoes. The test preparation is simplified and the test can be run unattended simultaneously or independently on the two positions. Test timing, water injection volume, temperature and specimen insertion are precisely controlled. Directly compatible with both ASTM & NACE test methods, the CB10 strictly follows the selected test method (ASTM D665, NACE TM0172, ASTM D7577, GOST 19199, JIS K2510, …). The corrosion rating can be done visually (pass/fail) or much more precise and not subjective by automated corrosion rater CT10. ASTM / NACE Corrosion Bath, ASTM D665, D4378, NACE TM0172, IP 135, ISO 7120, GOST 19199, JIS K2510.



Most popular related searches
corrosion testing
ASTM testing method
ASTM method
ASTM testing
injury prevention
calibration instrument
pipeline corrosion
corrosion analysis
pipeline testing
oil sampling
  • Refineries
  • Mineral and steam turbine oils
  • Pipeline and terminals
  • Iron Corrosion testing
  • ASTM D665 (A, B, C)
  • ASTM D4378, D7155, D7577
  • NACE TM0172
  • IP 135, IP PM DB
  • ISO 7120
  • GOST 19199
  • JIS K2510
Easy

The CB10 is a straightfoward fully automated instrument. The test preparation is simplified and the test can be run unattended, independently, on the 2 positions.

Wide range of applicationsThe CB10 is directly compatible with the following types of sample : lubricating oils, pipeline cargoes and glycol.Increased precision

Both PT100s come with embedded calibration data. The instrument precisely controls all the test conditions : temperature, stirring speed, time, water volume injection.

Reduced labor and operation time

The test preparation is simplified and the test is run automatically and independently on the two positions.

Increased safety

The CB10 totally eliminates all safety risks. If anything hangs to the stirrer shaft, the stirring will be stopped to prevent injuries.

Very compact design

The 2 positions standalone automated CB10 instrument does not need much bench space: the width is only 44 cm.

Running a test with the CB10 is straightforward and very easy. The operator just has to:

  1. pour the sample into the beaker
  2. install the beaker and test specimen on the CB10
  3. initiate the test

Corrosion rating can be done visually by a trained operator.

The objective, repeatable and fully documented rating can be done by an automated rater CT10 (option) where the exact percentage of corroded area is accurately determined and a detailed test report is ready in less than 5 minutes. The instrument accodates ASTM pass/fail and NACE rating scales. Complete test report includes sample ID, operator name, date/time, standard, procedure, test duration, degree of severity of rusting and even a real picture of the rod.

Technical Points: Description

  • Temperature: Ambient to 80°C +/-1°C (programmable)
  • PT100: Embedded calibration data
  • Stirring: Up to 2000 rpm +/- 50 rpm (programmable)
  • Water volume injection: Up to 50 ml
  • Water reserve: Capacity: 1L
  • Interface: 7`` full-color capacitive touch screen
  • Languages: English, French
  • Communication: USB (2), Ethernet (1)
  • Dimensions:
    • W x D x H (mm): 440 x 415 x 630
    • W x D x H (inches): 17" x 16" x 25"
  • Weight: 22 kg (49 lbs)
  • Electrical: 100/240V - 50/60Hz - 500W
  • Operating conditions:
    • Temperature: from +10°C to +35°C
    • RH: 20% to 90% non-condensing
  • Mineral oil
  • Lubricant oil
  • Pipeline cargoes (Gasoline, Diesel, ...)
  • Glycol applications
  • Denathorated Ethanol and Ethanol  Fuel blends
