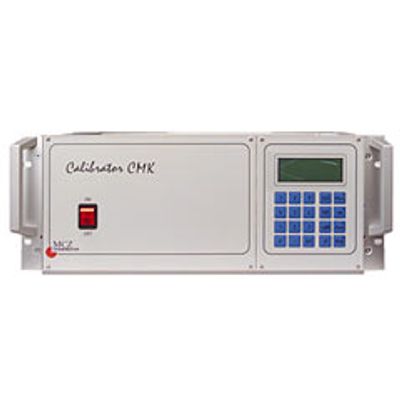

MCZ - Model CMK5 -Automated Gas Analyzer Calibration System
The calibration system serves the mandatory zero and end point verification of gas analyzers, especially those in automated measuring networks. The zero and end points are verified with a signal from the measuring network computer; the calibration can also be activated with the keyboard at the front of the CMK.
Special features:
- The CMK system can sequentially calibrate several different components (analyzers). This saves costs for additional equipment and installation site.
- Multipoint calibration with presetting of several mixing ratios for each component

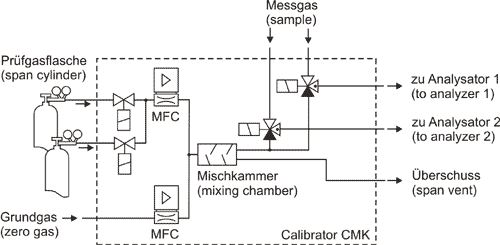

Span gas generation method
- Gas dilution* (mass flow control)
- Permeation*
- Ozone generator*
- Gas phase titration* (ozone in span gas mixture)
* based on the utilized modules - different modules can also be integrated into a system
Concentration adjustment
Up to seven concentration levels can be preset for each component using the keyboard.
Max. span gas flow
20 l/min
Activation
Via external contacts/open collector or optionally via RS232; manual control with keyboard
Case dimensions
19" 4RU
Additional functions
Switching of span gas exits between operating modes Measuring / Zeroing / Calibrating
Note
Weitere Daten zu diesem Kalibriersystem auf Anfrage.
