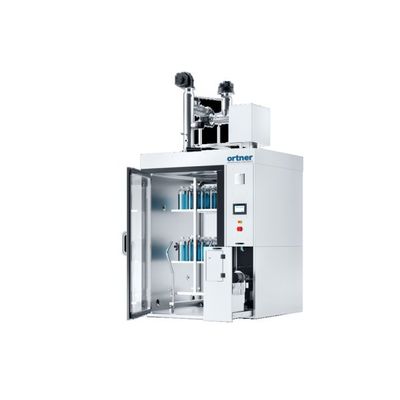

Ortner - Automated H2O2 Decontamination Lock Systems
The automated H2O2 decontamination lock system communicates with the driverless transport and building management system. It can be integrated into a building`s automated logistics system. The loading is possible by AGVs (Automated Guided Vehicles) as well as by a human user - this is also recognized by the system as an AGV.
Most popular related searches
emergency stop buttons
exhaust air filter
air filter
building management system
HEPA air filter
emergency stop
HEPA filter
decontamination system
terminal HEPA filter
HEPA H14
- Housing : Stainless steel EN-ISO 1.4301 brushed Ra < 1.6 µm
- chamber : Stainless steel EN-ISO 1.4404 brushed Ra < 0.8 µm
- rated capacity : 8.2kW / 13A
- nominal voltage : 3 x 400 VAC / 50 Hz / N/ PE
- Pneumatic connection data : Required compressed air quality according to DIN ISO 8573-1 6:4:4 min. 6 bar, 1000 l/min
- Connection data ventilation : supply air: 500 m³/h, exhaust air: 500 m³/h,
- doors : Framed door with attached ESG glass, gas-tight
- door seal : Pneumatic silicone seal
- tightness class : 4 according to DIN EN ISO 14644-7:2004 (D) and ISO
- Supply air filter and exhaust air filter : HEPA H14 filter/terminal
- steering : Siemens
- service : Dirty side: touch panel, emergency stop button Clean side: touch panel, emergency stop button
- rated capacity : 8.2kW/ 13A
- nominal voltage : 3 × 400 VAC/ 50 Hz /N/PE
- pump : High precision metering pump +/− 1%
- visualization : from outside – via lock
- flow rate : variable up to 50 m³/h
- H2O2 reservoir : 5 liters (technically pure H2O2)
- injection rate : 1-12g/min
- LC sensor lock chamber monitoring
- HC sensor lock chamber monitoring
- LC sensors for room surveillance
- supply air fan
- Exhaust fan including chamber pressure control
- Impact protection in the lock chamber
- Exhaust air HEPA filter H14
- Catalyst 500 or 1000 m3/h and circulating air fan
- remote maintenance
- audit trail
- Factory cycle development
- rail system
- Non-contact / automatic door operators
- Schuko sockets in the lock chamber
- RFID access management
- chamber lighting
