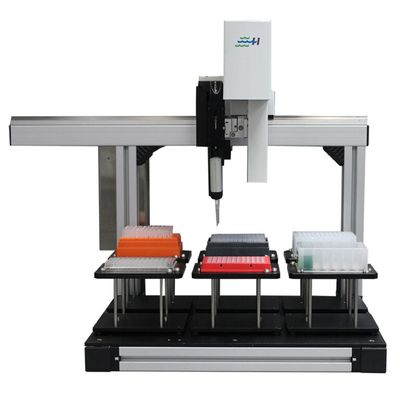

Hudson Robotics - Model SOLO -Automated Liquid Handler

Available in single, 8, and 12-channel pipette options, the SOLO™ Automated Liquid Handler is a flexible automated pipetting robot that can be programmed to do anything expected of a hand-held pipettor with much improved speed and reproducibility, though the use of a high-resolution motor drive. In general, a pipette rated at 20-200uL will dispense as low as 2uL with an average CV below 2%. Larger volumes are dispensed with CVs under 0.5%.

The SOLO™ Automated Liquid Handler is:

• Intuitive, it only takes minutes to learn to use
• Easy-to-use, agile, and flexible SOLOSoft™ software for data tracking and scheduling
• Precise as any ‘big deck’ robotic liquid handling system
• Compact footprint utilizes less bench space and easily fits on lab benchtops and into many standard fume hoods and biosafety cabinets
• Walk-away freedom from a continuous unattended operating system
• Available with a single channel, or multichannel (n 8-tip or 12-tip) pipette head and comes with a 6-12 position deck
• Deck can be extended to the left or right side for integrating other instruments
• Gripper available for moving labware around the deck.
• Can easily be integrated with additional instruments and software at any time
• Easily customized for unique or specialized applications

Users who wish to cherry-pick from individual wells can use either the single-tip SOLO (as shown in the video clip below) or the multi-tip configuration by picking up a single tip at a time.  The SOLO 8-channel pipet head can work with just one tip, several tips, or all 8 tips without any issues. There is no need to switch to a single tip pipette head.

The SOLO multi-tip offers a broad pipetting range. The mechanical drive and software controls of the pipette head allow the SOLO to push the boundaries of pipetting performance & liquid handling.

• Dispensing : Single channel – 1ul to 10 ml; optional pump assembly for bulk dispensing. 8 & 12 channel : 1-10 ul pipette head; 5 – 200ul pipette head; 20 – 1000 ul pipette head.
• Volume : Broad volume range: to 1000ul for the multi-tip heads, to 10mL for the single-tip heads.
• Plate Capacity : 4, 6, 8, 10,12 microplate positions available.
• Optional Microplate Gripper : Move plates to accessories on the deck or other instruments with the left hand or right-hand extension options.
• Plate Format : SBS standard footprint, any well configuration; inquire about custom nests.  8-, 24-, 96-, 384- and 1536-well microplate compatible.
• Tubes, Flasks, and Vials : Any SLAS/ANSI compatible formats
• Housing material :  Stainless main deck; painted steel upper arm covers over machined aluminum structural components.
• Spill Protection : All electronics protected by solid, non-penetrated cover to prevent any leakage onto electrical devices
• Arm Mechanism : Horizontal Travel/Vertical Stroke: x=22.5″; y=9.3″; z=4.0″
• Size : As small as 24.0″ x 29.5″ x 19.5″ (H x W x D) for a 4-microplate position SOLO
• Weight : 50lbs
• Upgrades : LabLinx™ upgrade available anytime for unparalleled flexibility and high throughput.
• Power Requirements : 120-240 VAC, 50-60Hz, 2Amps Max at 120
• Computer Interface : RS-232 serial cable
• Precision : The high-resolution motor that drives the SOLO’s pipette greatly increases its precision. Results vary depending on the nature of the liquid and the exact method of aspiration and dispense, but in general, a pipette rated at 20-200uL will dispense as low as 2uL with an average CV below 2%. Larger volumes are dispensed with CVs under 0.5%. Equipping SOLO liquid handling with a lower volume pipette allows one to dispense liquids in the range of 1 µL to 1000 µL with similar precision.

The SOLO Liquid Handler was developed to meet the growing need throughout the research, pharmaceutical and clinical communities for a high-resolution, compact robotic pipettor. It can be adapted to any research activity which requires the accurate addition, removal, and mixing of liquid samples and reagents – including those containing live cells. The SOLO can be integrated with other automated instruments for seamless process control and flexibility.

Applications include:

• DNA Extraction
• Microbiome/Microbiota Research
• Oligo Pooling
• Oligo Purification
• Gene Assembly
• DNA and RNA Normalization
• Synthetic Biology
• Plasmid Preparation
• Fungal, Yeast, Bacterial Colony Picking
• Colony Plating
• DNA Transformation into Bacteria
• Protein Binding
• Protein Expression & Purification
• Handling Non-Standard Sample Plates
• ELISA
• Serial Dilutions
