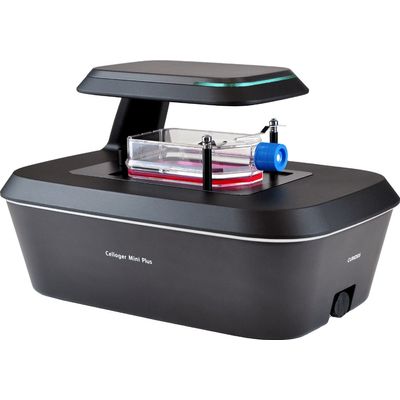

Curiosis - Model Celloger Mini Plus -Automated Live Cell Imaging System
Celloger Mini Plus makes it faster and easier to accumulate outstanding research results tailored to your research protocol. Celloger Mini Plus is equipped with the exceptional live cell imaging technology and user-friendly software that enables various types of research and application. This system with advanced fluorescence and bright field microscopy, autofocusing and real time multi-position imaging, intuitive and optimized software provides you all the tools you need to acquire best quality and accurate research results. Celloger Mini Plus is designed to be rigid and robust to withstand the temperature and humidity suitable for the growth of cells that makes it compatible with CO2 incubators.
- One color fluorescence (Green or Red) and bright field imaging technology
- Compact size that easily fits into standard CO2 incubators
- Fully motorized multi-position imaging up to 96 well plate
- Compatible with various cell and tissue culture vessel types
- Multiple focal planes can be captured through Z-stack imaging
- Intuitive UI/UX and easy to acquire confluency data
- Increased focus speed and reproducibility with reliable autofocusing function
- Image stitching possible to enable analysis of larger volume and sections
Dimensions: 226*358*215mm
Weight: 5.6kg
Objective Lens: 2X / 4X / 10X
Camera: 1.25MP / 5MP CMOS
Stage: Motorized XYZ stage
Operating environment: 5-40?, 20-95% humidity
File export format: TIFF, JPEG, PNG, AVI
Resolution: 1296 x 972 pixel (1.25MP); 2592 x 1944 pixel (5MP)
Imaging positions: up to 1000
Imaging mode: Bright-field / GFP / RFP
Vessel holders: Well plate(6-96), Petri dish; (35-100), T-flask(25-75)
- Wound healing assay
- Cell migration
- Cell morphology
- Cell confluency
- Cell proliferation
- Cytotoxicity assay
- Transfection efficiency assessment
- Coculture monitoring
- Multipoint cell monitoring
