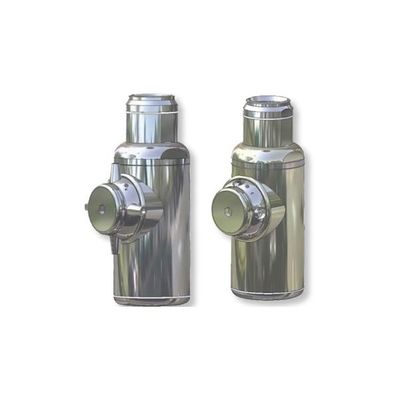

Butterworth - Model Type BC (FT Only) -Automated Tank Cleaning Machine

The Butterworth Type BC is a highly versatile machine and is applicable in most all types of tanks for process, storage, and transportation. Tank capacities range from500-45,000 gallons (1.8-170 M3)

The Butterworth Type BC machine creates a pattern matrix similar to a ball of twine (see cleaning pattern simulation in the lower right hand corner of this page). A complete pattern is established when 65 axial revolutions of the body have been completed. During the process of this pattern build out, 8 cycles (for a 4nozzle hub) and/or 4 cycles (for a 2 nozzle hub) are established with each cycle increasing the density of the pattern matrix.

• Hygienic design
• High jet-stream impact
• Reduced cleaning times
• Reduced effluent generation
• Reduced energy costs
• 100% self-rinsing (for specific models)
• Improved capital equipment utilization

• Pressure Range:
• 0-300 PSI (21 Bar)
• Flow Range:
• 0-205 US GPM (47 M3/hr)
• Maximum Temperature:
• Static : 300°F (149°C)
• Operational : 300°F (149°C)
• Minimum Opening:
• 5.307" (134.79 mm)
• Drive Type
• Integrated turbine and shaft
• Materials of Construction (As Standard):
• 316 Stainless Steel/CD4-MCU Duplex S/S
• See manual for parts detail
• Lubrication:
• Flow-Through (Media Lubricated)
• Weight:
• 11 lbs. (5.0 kg)
