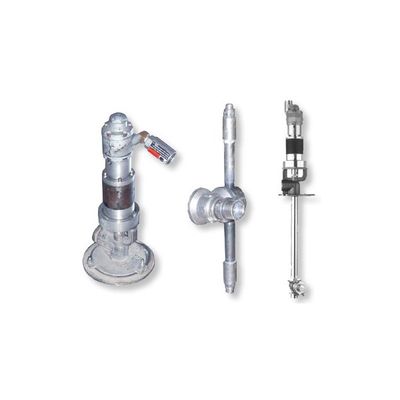

Butterworth - Model Type MICRO100A -Automated Tank Cleaning Machine

Industries
The Butterworth Type MICRO100A is a highly versatile machine and is applicable in most all types of tanks for process, storage, and transportation. It can be used as a portable unit or permanently mounted.

Operational
The Butterworth Type MICRO100A machine creates a pattern matrix similar to a ball of twine. A complete pattern is established when 36 axial revolutions of the body have been completed. During the process of this pattern build out, 4 cycles are established with each cycle increasing the density of the pattern matrix. The variable speed motor allows for flexible cycle times.

Pressure Range – Fluid:

• 0-1000 PSI (69 Bar)

Pressure Range – Air:

• 0-10 PSIG (0-0.68 Bar)
• Consumption
• 1.4 – 3.1 SCFM (40-88 1/min.)

Maximum Temperature:

• Static : 300°F (148.89°C)
• Operational : 200°F (93.33°C)

Materials of Construction (As Standard):

• Wetted parts
  • 316LSS
  • PTFE
• Other Parts (See manual for parts detail )

Lubrication:

• Flow-through (media lubricated)

Minimum Opening:

• 3.75” (95.25mm)
