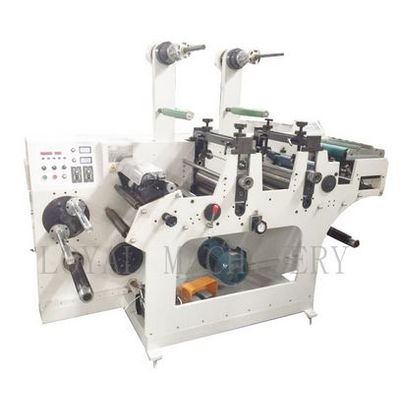

Loyal - Model HC-320A -Automatic Blank Label Slitting Rotary Die Cutting Machine with Turret
HC-320A Automatic Slitting and Rewinding Machine. This type slittHC-320A Automatic Slitting and Rewinding Machine. This type slitting machine is ideal processing machine of narrow width material, such as label and other semi finished product. The compact design allows easy install and space allocation as well as easy operation.chine is ideal processing machine of narrow width material, such as label and other semi finished product.
Most popular related searches
Use:
This type machine is the most ideal machine for label slitting.
It have other functions such as: automatic inspection, automatic correcting, automatic counter etc, can be finished in once process.
- Synchronous belt transmission, can assure the noise much smaller.
- 1 inch ,2 inch ,3 inch tube all can be used for this type machine .
- Air shaft rewinding .
- Taper tension controller adopted for more friendly tension control of unwinding and rewinding unit .
- EPC/LPC uses photocell correction.
- Machine model HC-320A
- Slitting speed 120m/min
- Die cutting speed 80m/min
- Max unwinding width 320mm
- Rewinding roller diameter(2 rollers) 2*φ200mm
- Rewinding roller diameter (1 roller) φ600mm
- Unwinding roller diameter φ700mm
- Precision ±0.15mm
- Voltage 220V±10%
- Total power About 2.5kw
- Machine weight About 500kg
- Installation dimension 1600*1100*1700mm
