Tailin - Model ASC-200 -Automatic Colony Counter

• "Zero-click" operation: automatically recognize the counting area, instant shooting
• Convenient operation: simple and clear system interface
• Lightning counting: 1000cfu per second
• Results high accuracy: internal and adherent areas of the culture dish are all counted;

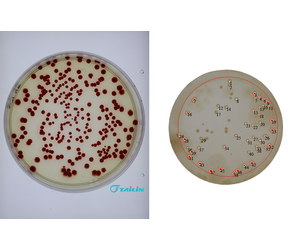

• Use the Watershed algorithm to segment fusion colonies to ensure accurate results
• Flexible design: suitable for multi-size, different models of culture dishes
• Sterilization function: UV disinfection and sterilization to avoid cross-contamination
• Scan recording: supports QR code or barcode recording

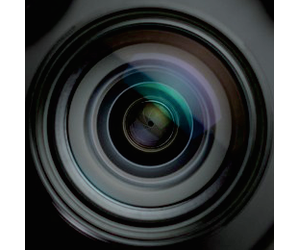

• Ultra-high definition camera: 20 million pixels

-12 million pixel lens

-1.1" large target surface, wide field of view (150*150mm)

-Counting for Multi-size culture dishes

-SONY IMX183 series CMOS

-20 million pixel color high-definition camera

-1" photosensor, clearer shooting, and more abundant details

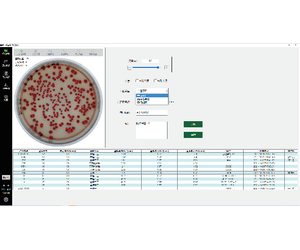

-English version, user-friendly software interface

-Two modes for selection: petri dish with membrane & normal petri dish

-Advanced image processing algorithm: better determining, segmenting and counting of the colony

-Can be connected with LIMIS system

-Conform to 21 CFR Part 11 requirements

-Result traceability: photo storage in the computer

-Result export: pdf, jpg, bmp, png, exce

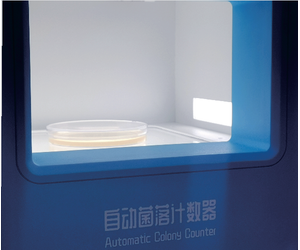

The bottom backlight and the left and right side light sources are arranged with high-density LEDs, matched with a nano-level diffuse reflector, the light is soft,

and the colonies from the center to the edge can be uniformly illuminated to highlight the outline.

-Simple metal chassis

-Drop-down hovering board in the chamber to effectively block the interference of ambient light and ensure the imaging effect

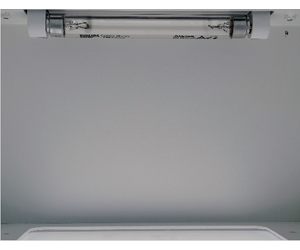

-In-built 254nm UV lamp, can kill the internal contaminated colonies and meet the needs of ultraviolet mutagenesis of special bacteria

-Pulling down the hovering board can effectively block UV rays to ensure safe use
