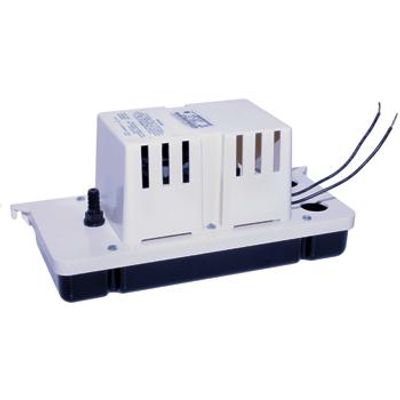

Little Giant - Model VCC-20ULS VC Series -Automatic Condensate Removal Pump
VCC Series is ideal for collecting, detecting, and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required.
Most popular related searches
stainless steel pump
air conditioning
check valve
tank cover
drain pump
gravity drainage
furnace
condensate pump
condensate pumping
refrigerant air conditioning
- 1/30 HP high performance motor
- Low profile for limited space applications
- ABS tank, motor cover, and volute
- Stainless steel pump shaft
- Removable 3/8" barbed check valve
- Thermal overload protection
- Safety switch
- UL / CSA listed
- Horsepower: 1/30
- Flow: 80 GPH @ 1` Lift
- Cord Length: 6`
- Shut Off: 20`
- Voltage: 115
- Hertz: 60
- Amps: 1.5
- Watts: 93
- Weight: 5.4 lbs.
- Height: 5"
- Width: 5"
- Length: 12"
Designed for automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible or practical. Also suitable for high efficiency oil and gas-fired condensing furnace equipment.
- Motor: 1/30 hp
- Discharge: 3/8" O.D. barbed
- Housing/tank cover: ABS
- Motor Cover: ABS
- Volute: ABS
- Tank: ABS
- Impeller: Glass filled polypropylene
- Check valve: Acetal
