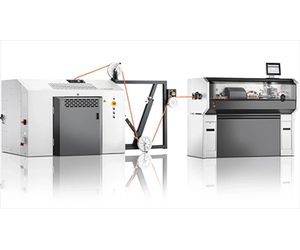

Schleuniger MegaStrip - Model 9680 -Automatic Cut & Strip Machine
The MegaStrip 9680 cuts and strips wire, multiconductor, and shielded cables up to 35 mm (1.38") with cross sections up to 120 mm² (4/0 AWG) or optionally 300 mm² (MCM 600). The MegaStrip 9680 processes wires with cross sections from 1.5 – 120 mm² (16 – 4/0 AWG) or optionally 240 – 300 mm² (MCM 500 – 600) in a multistep stripping process. It handles shielded cables and complex multi-conductor applications in one automated operation. For quick changeover, it comes equipped with the SmartBlade system.The MegaStrip 9680 consists of two modular machine designs offering an large processing range for larger diameter cables.
The "M" version features a freely programmable multiblade cutter head, while the "MR" version includes an additional rotary incision unit for precise shield cutting.Both models are compatible with the CAYMAN cable processing software and the CAO planning software (Manufacturing Execution System), enabling integration into various networks.

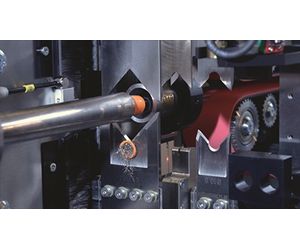

High-Precision Cutting Unit with SmartDetect Quality Monitoring
The MegaStrip 9680 precisely cuts stranded wire, shielded, and multiconductor cables. The system's continuous self-testing guarantees a high level of quality assurance.
Partner peripherals and the full Schleuniger range of accessories can be easily connected to the MegaStrip 9680, further enhancing its capabilities.
The high-precision Schleuniger RX technology positions the rotary cutting blades with accuracy. The axes are powered by servomotors with encoder monitoring to detect any blockages.
MegaStrip 9680
Metric
- Pull-off length: Left side: 225 mm (8.85") (standard) 300 mm (11.8") (2-printer configuration), Right side: 360 mm (14.2")
- Wire outer diameter range: 0.0984 - 1.38 in
- SmartBlade blade cartridge: 2 x 56 mm (2 x 2.20") 4 x 28 mm (4 x 1.10”) 56 + 2 x 28 mm (2.20” + 2 x 1.10")
- Conductor cross section: Standard: 1.5 mm² - 120 mm² (16 - 4/0 AWG) Optional: 240 – 300 mm² (500 MCM - 600 MCM) both depending on cable type
- Wire cross section: 1.5 - 300 mm²
- Wire outer diameter min.: 2.5 mm
- Wire length max.: 1000000 mm
- Strip length min.: 0.1 mm
- Strip length max.: 1000000 mm
- Strip length, full stripping on left side max.: 225 (standard), 300 (2-printer configuration)
- Strip length, full stripping on right side max.: 360 mm
- Wire outer diameter max.: 35 mm
- Automatic conductor detector: SmartDetect
- Wire cross section min.: 1.5 mm²
- Wire cross section max.: 300 mm²
- Sequence processing (number of wires): yes
- Length accuracy: Repetition accuracy: ± (0.2% + 1.0)
- Drive system: Belt
- Noise level: <70 dB
- Electrical connection: 3L+N 380/220–415/240 VAC 3L 200–240 VAC 50/60 Hz
- Compressed-air connection: 6 bar
- Air consumption: 10 l/min
- Network connection: Yes
- Recommended operating pressure: 6 bar
- Weight: 528 kg
- Dimensions/length: 1730 mm
- Dimensions/width: 1055 mm
- Dimensions/height: 1365 mm
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
Imperial
- Wire outer diameter min.: 0.0984 in
- Pull-off length: Left side: 225 mm (8.85") (standard) 300 mm (11.8") (2-printer configuration), Right side: 360 mm (14.2")
- Wire outer diameter range: 0.0984 - 1.38 in
- SmartBlade blade cartridge: 2 x 56 mm (2 x 2.20") 4 x 28 mm (4 x 1.10”) 56 + 2 x 28 mm (2.20” + 2 x 1.10")
- Conductor cross section: Standard: 1.5 mm² - 120 mm² (16 - 4/0 AWG) Optional: 240 – 300 mm² (500 MCM - 600 MCM) both depending on cable type
- Wire cross section: AWG16 - MCM600
- Wire length max.: 39370 in
- Strip length min.: 0.003937 in
- Strip length max.: 39370 in
- Strip length, full stripping on left side max.: 8.85 (standard), 11.8 (2-printer configuration)
- Strip length, full stripping on right side max.: 14.2 in
- Wire outer diameter max.: 1.38 in
- Automatic conductor detector: SmartDetect
- Wire cross section min.: AWG16
- Wire cross section max.: MCM600
- Sequence processing (number of wires): yes
- Drive system: Belt
- Noise level: <70 dB
- Electrical connection: 3L+N 380/220–415/240 VAC 3L 200–240 VAC 50/60 Hz
- Compressed-air connection: 87 psi
- Network connection: Yes
- Recommended operating pressure: 87 psi
- Weight: 1164.02 lb
- Dimensions/length: 68 in
- Dimensions/width: 41.5 in
- Dimensions/height: 54 in
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
