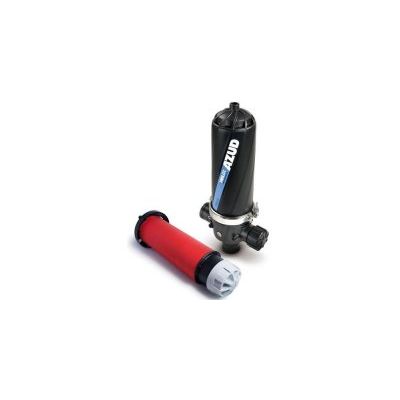

AZUD HELIX - Model DLP -Automatic Disc Filters
These systems adapt to installations in which the pressure conditions are a limiting to the rest of self-cleaning systems, reducing the consumed water on the backflushing and maintenance and the pressure, optimizing the filtration process and improving the energy cost of the installation.
Water And Energy Saving
Minimum backflushing pressure for maximum efficiency per filter.
Disc filtration. Maximum Safety
Its patented design and high quality materials used in manufacturing guarantees an extended life with high resistante.
Azud Helix System
Helix created Centrifugal Action optimizes the filtration performance and reduces backwash frequency and maintenance.
Self-Cleaning Filtering Element
Backwashing uses minimal water maintaining an efficient cleaning action. Large filtering surface. AZUD filtration units available from 5 to 400 micron.
Modularity. Versatility. Compatibility
The system permits a wide range of flows and configurations using a minimal number of components.
Compact assembled systems for easy transportation and installation
Manufactured in plastic materials.
Low Maintenance.
No tools required. Maximum wear resistance of high quality moving parts.
FILTRATION STAGE: The Helix generates a centrifugal helical effect upon entry into the filter, this moves the particles away from the discs.
The water then passes efficiently through the depth of the uniquely designed discs.
BACKFLUSHING LOW PRESSURE STAGE: The clean water is introduced from the reverse direction through the filtering element. This decompresses the stack discs, allowing the discs to separate and backwash efficiently.
The solids are expelled from the discs and evacuated through the backwash manifold.
The filtration process then restarts with the compression of the discs.
