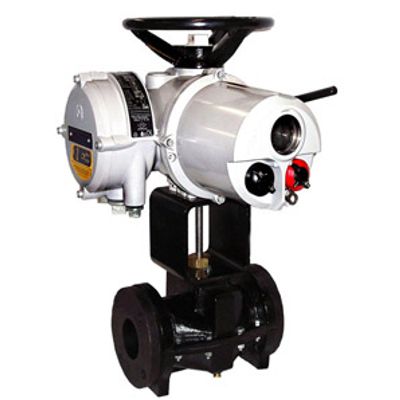

Onyx Valve - Model Series CEP -Automatic Electric Pinch Valves
Pre-pinched Port. Mechanically Pinched. Single Pinch Mechanism. Simple Economical Design. Clog resistant full round opening. Low pressure drop. No packing. Drop tight closure. On/Off or throttling service. Long lasting compression molded sleeve. High efficiency stainless steel ACME stem for easy operation. Complete motorized actuator includes starters, power supply, limit switches, auxiliary Hand wheel, push buttons and selector switch. Valves come fully assembled, calibrated and tested for plug & play operation.
Ideal for automatic control of abrasive, viscous, and corrosive fluids including wastewater, mine slurry, chemicals, cement, pulp , powder and pellets.
The CEP is a pre-pinched on centerline, single pinch electric operated valves. An electric motor drives a single pinch bar from the top against the rubber sleeve to pinch off flow.
Actuators are available with single and 3-phase motors. All electric actuators come with auxiliary hand wheel. 3-phase actuators come with reversing contactors, power supply, limit and torque switches, push buttons, selector switches and pilot lights.
- Flanges: ANSI STD 125/150 lbs.
- Housing: Cast iron, ASTM A48, Class 35
- Stem & Pinch bar: 303 stainless steel
- Bearing: Bronze alloy
- Epoxy paint
- Sleeve elastomer
- ANSI STD 300lbs. flange
- 316 stainless steel stem
- Secondary containment package
- Positioners
- Limit switches
