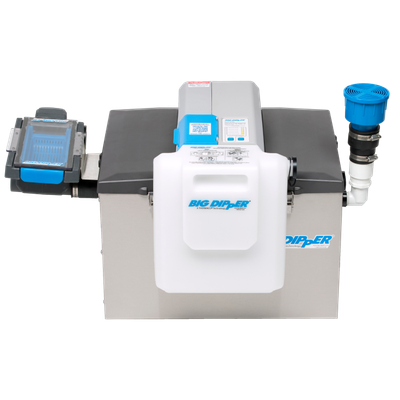

Thermaco Big Dipper - Model W-250-IS-SFK - 25 GPM Pro Bundle -Automatic Grease Removal Device
Big Dipper Grease Interceptors are innovative units designed to efficiently separate grease and solids from wastewater in commercial kitchens and food processing facilities. These units are crucial for complying with municipal wastewater regulations by preventing plumbing issues and reducing environmental impact. The interceptors use a passive hydromechanical process to trap and automatically remove grease, which can then be collected for disposal or recycling. The systems come in various sizes to suit different flow rates and kitchen sizes. Each unit features easy-to-access components for simplified maintenance and are equipped with solid state controls. This enables precise operation, ensuring consistent and effective grease removal. Big Dipper Grease Interceptors are ideal for restaurants, cafeterias, and any commercial food preparation setting requiring efficient grease management.
- Advanced Odor Protection* (patent-pending) keeps odors inside the tank and out of the kitchen.
- Fully automatic self-cleaning cycle. Removes collected grease & oils from tank without any operator assistance. Comes complete with a digital control interface and Grease Collector.
- Constructed of corrosion-resistant materials suitable for installation in virtually any location. Attractive sanitary Stainless Steel exterior.
- Integrated Motor/Grease Outlet/Heater/Lid enables a fast, do-it-yourself unit operation reversal.
- Compact footprint.
- Two (2) No-Hub Connectors provided.
The DSA-25-1 Dry Strainer is a companion for Big Dipper units with flow rates up to 25 gallons per minute (gpm). The Dry Strainer simplify maintenance and reduces clogged drains caused by coarse solids build-up.
The CF-VENT-1 Carbon Vent Filter is “activated” when injected with hot air or steam, creating pores that trap odor molecules. Big Dipper Carbon Vent Filter containers are durable and reusable, and the carbon pellets are biodegradable. Each filter comes with one 9-oz. packet of replacement pellets..
Materials:
Exterior: 304 Stainless Steel, Bright Finish
Interior: Rotationally Molded Polyethylene
Electrical: 115 VAC, 50/60 Hz, 1173 Watts (10.2 Amps)*
Maximum Inlet Flow Rate: 25 GPM (1.58 l/s)
Number of Skimming Wheels: 1
Skimming Rate: 9 Pounds Per Hour (4.08 Kg Per Hour)
Grease Retention Capacity: 56.4 Pounds (25.6 Kg)
Internal Solids Strainer Capacity: 1.85 Gallons (7 L)
Product Weight: 48 Pounds (21.7 Kg)
Thermaco Big Dipper Model No. W-250-IS, bright finish type 304 stainless steel exterior, rotationally molded polyethylene interior automatic self-cleaning grease and oil recovery separator(s) for floor mounted or partially recessed installation, rated to ASME A112.14.3 and/or PDI-G 101 standards at 25 gallons per minute (1.58 liters per second) peak flow with 56.4 Pounds (25.6 Kg) of grease capacity and including as an integral part of the unit, 2” (50 mm) inlet/outlet, 1 rotating gear oleophilic/hydrophobic skimming wheel assembly for automatic grease/oil removal, flow control device, self-regulating electric immersion heater with thermostatic control, 1” (25mm) vessel vent, integral gas trap, digital control for programmable operation, field reversible motor assembly and grease/oil sump outlet, quick release stainless steel lid clamps, fully removable polymer lid with magnetic lid tensioners, internal polymer/stainless steel strainer basket for collection of coarse solids, polymer wiper blade unit and a separate gasketted removable grease and oils collection container with carry handle and pouring spout. Electric assembly shall be tested to comply with pertinent sections of the Standards for Safety ANSI/UL 73 and/or ANSI/UL 1004. Electric motor equipped with overload protection. Two (2) no-hub connectors for plumbing connection provided.
