FABTEXBALER - Model ATB-40 -Automatic Horizontal baling press machine|auto-tie baler

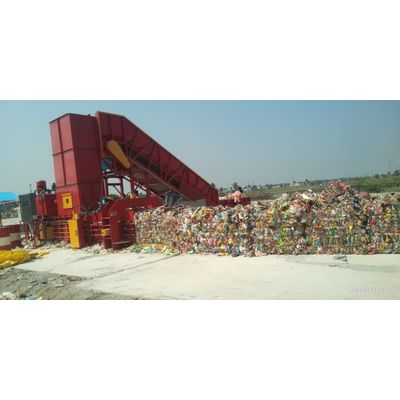

The ‘FABTEX’ make auto-tie horizontal balers provide an automated approach to baling material through a horizontal press. Material is automatically tied at the end of each bale by automated tying system, providing a highly efficient solution for increased capacity baling needs. The auto-tie baler should be considered when production requirements exceed 150 tons/month. Auto-tie horizontal balers are ideal for distribution centers, manufacturing facilities, mid to large size recycling and material recovery facilities (MRFs), and mid to large size printers. Auto-tie horizontal balers are ideal for baling: shredded materials, document destruction, OCC, and high paper grades.Most popular related searches
horizontal auto tie baler
auto-tie baler
auto tie horizontal baler
horizontal baler
horizontal auto-tie baler
materials recovery facility
automatic baler
baler
baling press machine
horizontal baling press
Applications:
- Cardboard
- Paper
- Natural fibers
- Pet bottles
- Shredded material
- Plastic Flims
- Plant Fiber (which may include Coconut fiber, Palm Fiber, Abaca Fiber)
- Municipal Solid Waste
- Shredded Paper
- Kraft Paper
- Hay
Sailent Feature:
- Hydraulic Cylinder Operated Door which increases work efficiency and saves labor.
- Strapping can be done by steel wire for high strength.
- High compaction ratio
- Material Feeding by conveyor.
- Effective Operation: Inspection window for safety and dust reduction.
- Electrical Control by PLC, fully automatic.
- Adjustable Bale Length for achieving bale weight and height.
Technical Specification:
- Type: FAB/ATB/40
- Capacity (t): 40
- Bale Size (mm): L adjustable x 800 x 720
- Bale Weight (Kgs): Up to 250
- Motor Power (HP): 30
- Pressure (bar): 150
- Production (tons/hr): 2
- Number of Automatic Tying: 4
- Steel Wire Size: Ø 2.7 – 3
- Weight of the Machine (t): 6.5
