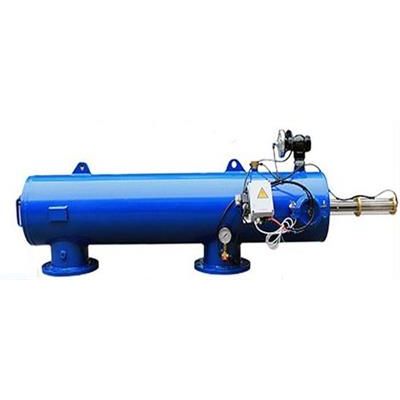

Filtrascale - Model CAF800 -Automatic Hydraulic Self Cleaning Filters

Nominal flow per unit: 1700m3/h. Maximum operating pressure: 10bar (150psi), 16bar, 25bar. Pressure loses during the cleaning: 0.1bar (2psi). The highest working water temperature: 65℃ (149°F). The range of filter fineness: 10-3000um. Water volume self-cleaning needed: 80. Self-cleaning time: 10 seconds. Self-cleaning control mode: pressure Gage control. Electronic control mode: DC12, AC24. The type of filter screen: 316l woven mesh, wedge-shaped metal-mesh.
