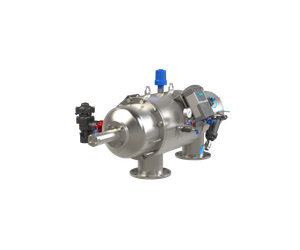

FiltersafeModel Trident H -Automatic Hydraulic Self-Cleaning Screen Filter

SHARE

Filtersafe’s first automatic hydraulic self-cleaning filter is designed for near-zero maintenance. The Trident H will work constantly anywhere, providing a constant stream of clean, filtered water even during the flushing cycle. The Trident Hydraulic series is ideal for agricultural applications, as the filter does not require being attached to a power source.


Most popular related searches
  • Full operation even during cleaning cycle
  • Full 316 stainless-steel construction
  • 4-Layer sintered screen with class-leading effective screen area
  • Continual operation – No downtime when flushing.
  • Highly effective cleaning with over 99% recovery rate and full-screen recovery
  • Horizontal and vertical models available to suit your needs

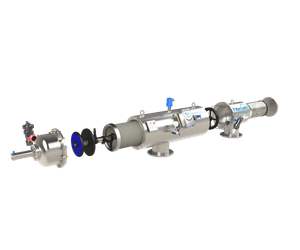

  • Easy access to internal parts
  • Failsafe NC Flush Valve
  • Bluetooth DC Powered Controller
  • Just Plug & Play!
  • Up to 600 m3/h Max. Flow Rate
  • 80 – 500 μm Filtration Degree
  • 10 bar Operating Pressure
  • Less than 1% Backwash Water Consumption
  • 2 bar (30 psi) Min. Operating Pressure
  • Up to 12,000 cm2 filter area
  • AD 2000 Design code
  • Temp 65°C

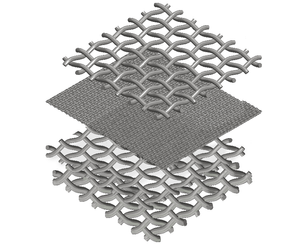

  • 4 Layer Sintered Structure
  • Enhanced Strength and Durability
  • High Effective Area
  • Available in 80-500μm
  • 316 Stainless Steel
  • Reliable Turbine Drive System
  • Helical Scanner
  • Low Water Use
  • Low-pressure Operation 2 Bar
  • Large Nozzle Size
  • Low Maintenance
  • Filtration Process Continues During Flush Cycle
