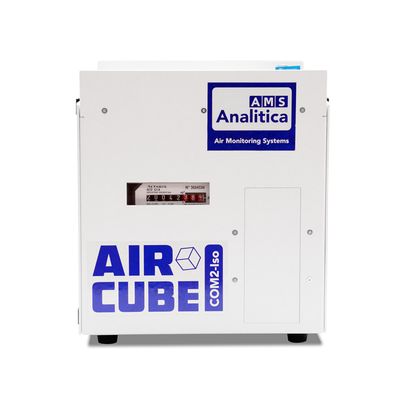

AMS Analitica - Model AirCube COM2-Iso Touch -Automatic Isokinetic Portable Air Sampler

AirCube COM2-ISO with new touch screen interface

AirCube COM2-Iso is the professional choice for emission sampling control. The sampler , compact and lightweight, integrates the module for the detection of isokinetic parameters into the main electronic control support, for real-time sampling applications compliant with the requirements of EN-13284:2017, EN-ISO 16911 and US-EPA M1 and 2, M5 and M17. The AirCubeCom2-Iso sampler can perfectly perform any "filter in stack" or "filter out-stack" emission sampling protocol. Further application work for dioxins, metals, inorganic acids, mercury, sulfur dioxide, ammonia can be applied using heated probes and specific impinger kits. The new electronic support with high-resolution 5.5-inch color touch screen graphic display allows the user to easily set the parameters and view them in real time during the sampling phases such as: instantaneous and average flow rate, volume and temperature, instantaneous and average environmental temperature and barometric pressure, partial sample volume and sampling time. Traverse points selection, nozzle selections, PM10 201A and EN-23210 sampling condition. In addition, the device displays the sampling progress on the touch screen display through a diagram based on time and aspirating flow rate. This option allows the user to verify the correct execution of the sampling, validating the data through the calculation of the standard deviation. The AirCube COM2-Iso is the first sampler capable of operating on standard AC 220 power and with an optional battery pack. Low-flow capabilities with a flow control valve allow the user to perform a gas and vapor sampling at very low flow rates without using any adapters or by-passes. Compact and lightweight, the AirCube COM2-Iso sampler integrates sampling performance with a definitive step-by-step protocol for traverse points and correct graphical probe positioning.

Main features

• Sampling system compliant with the requirements found in official references such as EN-13284, EN-16911, EN-1948, EN-23210, US EPA M5, US EPA M17, US EPA M1 and M2, US EPA M4 and US EPA M201A.

• Compliance for the measurement of isokinetic parameters as required by EN-16911 and EN-15259 standards

• Management of three users for probe heating, filter box and auxiliary heated line for gas analyzers

• Automatic calculation of sampling points with the option of additional points or setting them in manual mode

•Management of an external sampler via Bluetooth interface for branch line sampling (EN-14385, EN-1911, EN-13211, EN-21877 EN 14791) and automatic calculation of sampling conditions.

• Graphic visualization on the display of the correct positioning of the probe in the sampling points

• Automatic calculation or manual entry of the nozzle diameter to be used

• Digital volumetric meter with 1% resolution (optional ISO 17025 certification) compliant with EN-14236:2018

• Calibration validation by the accredited reference laboratory

• Double internal protection trap for particulates and liquids with alarm

• Calculation of the stack water content with psychrometric method (EPA 4) with Water-Check system (optional)

• 7” high resolution backlit graphic color touch screen display

• Determination of isokinetic parameters compliant with ISO-CEN 16911, US EPA M1 and M2
Flow rate calculation for PM10 and PM2.5 sampling according to US-EPA 201A and EN-23210
Automatic calculation of traverse points according to EN-13284:2017 ISO-CEN 16911, EN 15259, US EPA M1 and M2

• Automatic and manual sampling nozzles selection

• Isokinetic Protocol compliant with ISO-9096, EN-13284 and US EPA
• Automatic calculation of the SWIRL angle with three-axis transducer (optional), Flow and constant calculated automatically without adding data in manual mode
• Automatic calculation of turbulence (WAF) resulting from the stack inner wall effect (EPA 2H)
• Step-by-step settings of sampling parameters in compliance with European and US EPA regulations
• Graphical display of stack diagram and traverse points in real time
• Sampling setup with derived flow with Bluetooth connection to dedicated secondary sampler
2m3 single head suction pump
• Suction flow range between 0,4 and 30 liters per minute with automatic compensation of pressure drops
• Double internal protection trap for particulates and liquids with alarm
• 4 connection for temperature detection (Stack, Impinger, Condensate and Filter Holder)
• Flow control with 1% precision digital volumetric meter (available with optional certification) with direct temperature and pressure reading compliant with EN-14236:2018
• Large 7” Touch Screen color graphic display
• Atmospheric barometric pressure sensor range 500-1100 mbar (RES. 0.01 mbar)
Static pressure sensor

- Measuring range (FS): +/- 1000 mm/H2O

- Resolution: 0,1 mm/H2O

- Accuracy:

- 0.9% on scale (FS) 0..100 mmH2O with readings below 010 mmH2O

- 0.8% on scale (FS) 0..300 mmH2O with readings below 030 mmH2O

- 0.8% on scale (FS) 0..700 mmH2O with readings below 070 mmH2O
Differential pressure sensor:

- Measuring range(FS): 0-100 mm/H2O

- Resolution: 0,01 mm/H2O

- Accuracy:

- 1% on scale (FS) 0..20 mmH2O with readings below 010 mmH2O

- 0.5% on scale (FS) 0..50 mmH2O with readings below 030 mmH2O

- 0.3% on scale (FS) 0..100 mmH2O with readings below 070 mmH2O

• Thermocouple sensors selectable between K, J, S
• 4 thermocouple inputs up to 1100°C - Res. 0.01°C
Ambient conditions

• Temperature -10°C % +50°C

• UR 95% non-condensating
Output data option RS232, BlueTooth, USB
Internal memory with SD Card: standard 32 Gb
Dimensions 28x28x28 cm (WxDxH) - Weight 8 Kg
Power supply 220 V-AC and option with integrated battery pack 12Vcc

Article: Code

• Air Cube Com-Iso Isokinetic automatic sampler: 600/A30002C-ISO
• Power Pack Cube Com2 (battery charger not included): 600/PP014A3COM2
• PowerPack battery charger with cable and power cord: 600/A18VISKPP
• 47 mm filter holder with filter support cassette: 600/PF4700
• Sprint B33 Portable printer: 600/SPRINTB33
• Printer thermal paper refill: 600/RCT57X50
