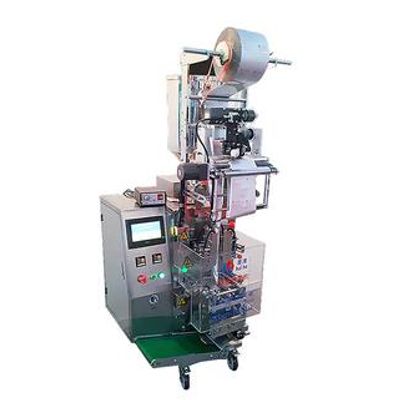

HuiheModel DXDL-240 -Automatic Liquid Paste Packing Machine with 3 or 4 Sides Seal

SHARE

Can finish the function of bag making, measuring, filling, sealing, cutting and counting. Controlled by computer and step motor pull bag, flexible bag length cutting, operator needn’t to adjust the unloading working, saving time and films. Separate PID control to temperature, suitable for various packing materials. Option device: ribbon printer, filling device, gas-exhaust device, horizontal sealing punching device, rotary cutter, small cutter, former beat device, batch pneumatic cutter. Simple driven system, working more stable,and easy to maintain. Packing material: (PET/PE), (Paper/PE), (PET/AL/PE), (OPP/PE).

Most popular related searches
  • PLC screen, intelligent control, failure warning, solid intelligence double road temperature control, the design of circulatory wind-electric cabinet for 24 hours working, 304 stainless steel.
  • Model DXDL-240
  • Bag Type 3 or 4 sides seal
  • Method of Measurement piston pump type
  • Range of Measurement 0-100ml
  • Packing Speed 30-60 bag/min
  • Total Power 1400W
  • Machine Weight 200kg
  • Bag Size W: 30-120mm   L:30-170mm
  • Machine Size L630*W750*H1600mm
  • Voltage 380V or 220V or made accordingly
