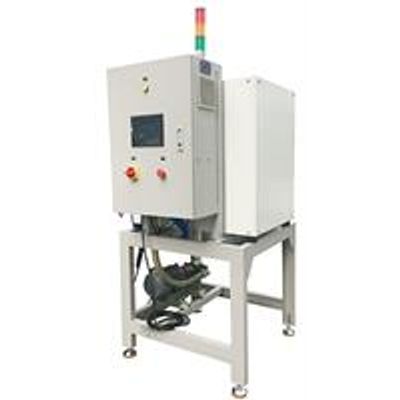

Hongyi - Model Hy800 -Automatic Oil Centrifugal Filter

• Rotor Dirt Holding Capacity 8 Liters
• Maximum Flow Rate 100 Liters/Min (Adjustable, recommended 50~80L/Min)
• Revolving Speed 3200 R/Min
• Main Motor 2.2Kw
• Auxiliary Motor 0.09Kw
• Power 2.29Kw 380V/50~60Hz, 3-phase,
• Control Panel Touch Display
• Width*Length*Height 860*870*1550 mm

Hy800 Automatic Oil Centrifugal Filter removes fine particles from oil to keep the oil clean according to the centrifugal separation principle.

• Oil is pumped into the centrifuge and directed into the rotor of the centrifuge. The centrifugal rotor is connected to the motor drive directly. The motor drives the rotor spinning and the rotor rotates quickly. The centrifugal force in the rotor causes the dirt particles present accelerate radially and deposit on the internal wall of the rotor. In the course of operation these deposits form a thick cake.
• Centrifugal force is capable of removing a wide range of particles extending into sub-micron range. The removal of particles by centrifugal force is based on their relative density; therefore there is no restriction on contaminant size.
• A barrier filtration device removes particles from oil based on filter element. Hongyi centrifugal oil cleaner is not a barrier filtration device; it has no filter element and no need filtration media to remove contaminant particles.

• Improved purity of the oil
• Extended oil life change period
• Increased engine/machinery Life
• Reduces engine/machinery wear
• Reduces maintenance costs
• Cuts waste disposal costs
• Reduces application downtime
• Maximized in-service time for machinery
• Full-Automatic separate impurity from oil without operator.
• Automatic remove impurity according to preset regular time.

• Very short investment recovery period & fast return on investment
• No replacement element & recurring cost
• Reduced contamination in oil
• Less load on oil filters & heat exchangers
• Less maintenance of filters & heat exchangers – operational / cost benefit
• Less wear of quench oil transfer pumps – operational & cost saving
• Less furnace downtime
• Increased production
• Touch display & Plc controller
• By-pass installation, not affect others equipment running

Hongyi Hy800 Automatic Oil Centrifugal Filter is widely used for industrial fluids/oils cleaning, such as:
cold forming, wire drawing, quenching, forging, honing, reaming, grinding, turbine oil; compressor oil; gear oil; transmission oil; water glycol based cutting oils; hydraulic oil; straight cutting oil; fastener manufacturing, furnace oil; neat cutting oil; bright bar oil; test bed oils; cement, thermal, steel plants, anti-rust, stamping oil; transformer oil etc.
