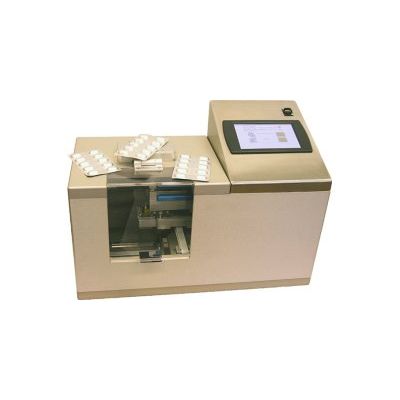

ECHO - Model BlistO2 -Automatic Oxygen Analysis System

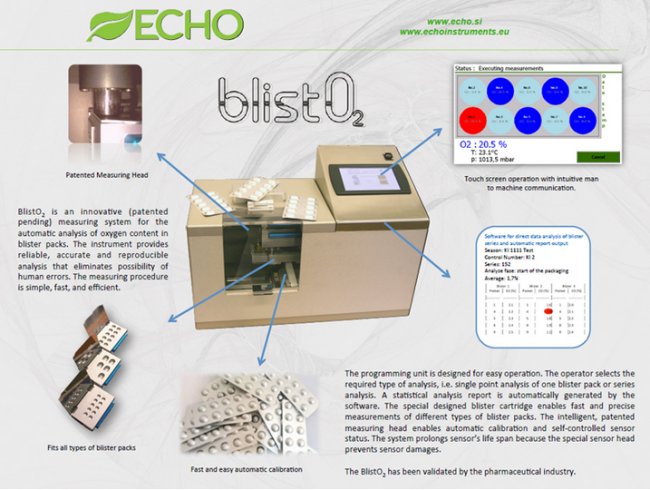

BlistO2 is an innovative (patent pending) measuring system for automatic analysis of oxygen content in blister packs. The analysis is accurate, reproducible, and eliminates the possibility of human errors.
Most popular related searches
automatic analysis
oxygen analysis system
optical sensor
analysis system
automatic analysis system
optical monitoring
- accurate and reliable analysis of oxygen content in blister packs
- fits all types of blister pack and blister materials
- user friendly with touch screen operation
- short time of analysis
- data analysis with statistical report
- self diagnostic operation
- Measuring principle : Optical sensor
- Measuring range : 0to21%0,
- Accuracy : +/-0.1%
- Reproducibility : ±0.1%
- Measuring time for one point in blister pack (max.) : <10s
- Average measuring time for 10 point blister pack : < 2 min
- Limit of detection : 0.1%
- Operating temperature : 5 to 40 °C
- Dimensions : length: 600 mm width: 315 mm height: 385 mm
- High precision positioning : < 0,02 mm
- Weight Level of protection : 50 kg IP 65
- Power supply : 100V-220VAC/50HZ
- Interface : USB, RS485, Ethernet
