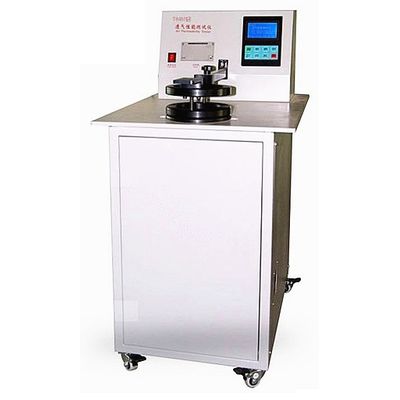

Bonad - Model BND-YG461Z -Automatic Permeability Tester
BND-YG461Z Automatic permeability testerType:BND-YG461ZBND-YG461Z automatic permeability tester can be used for testing the permeability of many kinds of fabrics, including technical fabric, non-woven fabric and other breathable material.Standard: GB/T 5453?ISO9237?AFNOR G07-111?ASTM D 737?BS 5636?JIS L 1096-A?DIN 53887.
Most popular related searches
BND-YG461Z automatic permeability tester can be used for testing the permeability of many kinds of fabrics, including technical fabric, non-woven fabric and other breathable material.
- Standard: GB/T 5453?ISO9237?AFNOR G07-111?ASTM D 737?BS 5636?JIS L 1096-A?DIN 53887
- meausrement unit:mm/s(L/m2.s) range 0.6~10000 mm/s(L/m2.s)
- Error:±3%
- pressure:50~500Pa
- test area:5cm2,20cm2(≈Φ50mm),25cm2,38cm2(≈Φ70mm),50cm2,100cm2
- standard configuration just with 20cm2, others need selective assembly
Note: When changing the test area, the pressure plate above test head and clamping ring both need to be changed too.
- tested fabric thickness:≤5mm
- power supply:AC220V±5% 50Hz
- fan power:370W model:HG-370-C
- dimension:720mm×500mm×950mm
- net weight:54kg/90KG
