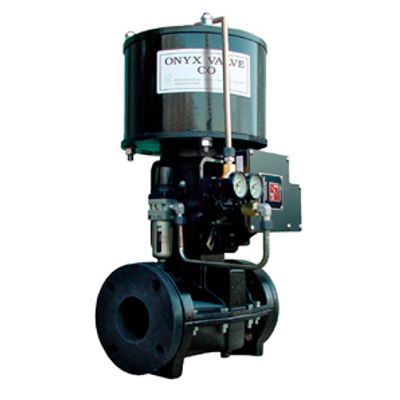

Onyx Valve - Model Series CAR -Automatic Pneumatic Pinch Valves

Full Round Port. Mechanically Pinched. Single Pinch Mechanism. Simple Economical Design. Clog resistant full round opening. Low pressure drop. No packing. Drop tight closure. On/Off or throttling service. Fail Open or Fail Closed pneumatic actuators. Long lasting compression molded sleeve.

Most popular related searches

pinch valve

pneumatic valve

pneumatically operated valve

secondary containment

mining wastewater

wastewater chemical

Ideal for automatic control of abrasive, viscous, and corrosive fluids including wastewater, mine slurry, chemicals, cement, pulp , powder and pellets.

A full round pneumatically operated valve with the maintenance free Onyx Actuator. The actuator uses a spring for reliable fail-open (PFO) or fail-closed (PFC) operation in a range of sizes. It does not require lubricated air.

Flanges: ANSI STD. 125/150 lbs
Housing: Cast iron, ASTM A48, Class 35
Stem: 303 stainless steel
Yoke: Carbon steel
Actuator: Cast iron/PVC

Epoxy paint
Sleeve elastomer
316 stainless steel stem
ANSI STD 300 lbs. Flange
Secondary containment package
Auxiliary hand wheel
Positioners
Solenoid valves
Limit switches
