Raptor Scientific - Model 3666 -Automatic Pressure Calibration (APC) System

FromRaptor Scientific

SHARE

The Model 3666 Automatic Pressure Calibration (APC) System is a versatile portable laboratory designed to generate and control calibration pressures up to 10,000 psig, with an accuracy of ±0.1% of the indicated value from 5 to 10,000 psig. It supports fast and efficient calibration for various pressure-sensing devices including gauges, switches, transmitters, and transducers. Available in multiple configurations, it features a combination of control units and pressure intensifiers housed in rugged, compact aluminum cases for easy transportation. The system utilizes dry nitrogen or inert gas as the medium and operates in a temperature range of +10° to + 40° C. Control specifications include a resolution of up to 0.001 psig below 100 psig and various unit measurement displays such as psig, inches of mercury, kilopascals, and more. It features a built-in thermal printer for data logging and supports automation via IEEE-488/GPIB interface. Components include a handheld remote control module, high-pressure hoses, quick-disconnect fittings, and accessories for proper operation and maintenance, designed to meet the requirements for field or laboratory applications.

Most popular related searches

pressure calibrator

automatic calibration system

strain gauge transducer

high-pressure hose

portable near infrared instrument

portable laboratory

locating system

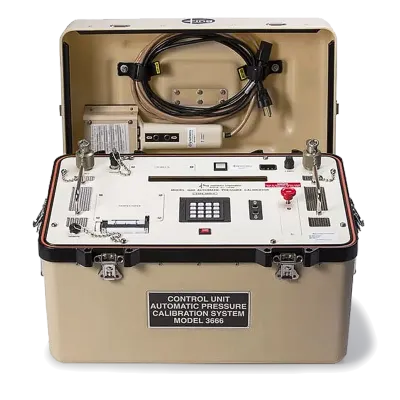

The Model 3666 Automatic Pressure Calibration (APC) System is a portable secondary standards laboratory capable of generating and controlling test and calibration pressures up to 10,000 psig with an accuracy of ±0.1% of the indicated value (IV) from 5 to 10,000 psig.

Available in four configurations, the Model 3666 APC System is designed for fast, efficient testing and calibration of pressure gauges, vacuum gauges, switches, transmitters, transducers, and other pressure-sensing devices. The test system components are housed in rugged, compact aluminum cases and can be easily transported to the location of instruments requiring calibration, which simplifies service and maintenance procedures.

Available in four configurations.
Housed in rugged, compact aluminum cases and can be easily transported to the location of instruments requiring calibration which simplifies service and maintenance procedures.
Consists of a control unit, a nitrogen supply cylinder, and an accessory kit containing all equipment required for use and maintenance of the system.
Model 3666 APC System is driven by microprocessor circuitry incorporated in the control unit.
An alphanumeric front panel display prompts the operator through the measurement process and performs all necessary calculations, saving time and effort.
Precise direct readings can be displayed using the following measurement units: psig, inches of mercury, inches of water, feet of seawater, kilopascals, and kilograms-per-square-centimeter.
A conversion kit enables the 3666-2K-1 APC System to be upgraded to 3666-10K-1 specifications.
A handheld remote control module displays measurements and enables the operation of the test set up to 10 feet from the control unit.
A convenient thermal printer built into the control unit can be used to generate hard copies of test and calibration data, eliminating time-consuming manual data logging.
The control unit incorporates an IEEE-488/GPIB interface, permitting automated calibration of the 3666 APC System using the 3689-A Precision Pressure standard System.
Quick-disconnect fittings are used on all pneumatic connections, enabling fast system setup.

Temperature Range:
Operating: +10° to + 40° C
Storage: -55° to 75° C
Humidity (operating): 50 to 90% RH, from 0°C to +50° C

Fluid Medium: Dry Nitrogen or other inert gas

Port Configuration: Quick-Disconnect Coupling

Control Unit Specifications:

Range:
3666-2K-1: 25 in-Hg vacuum; 0 to 2,000 psig (two quartz transducers)
3666-10K-1: 25 in-Hg vacuum; 0 to 10,000 psig (three quarts transducers)
3666-10K-3: 25 in-Hg vacuum; 0 to 10,000 psig (three strain gauge transducers)

Accuracy:
0 to 5 psig: 0.005 psig max. error
5 to 10,000 psig: 0.1% IV
Vacuum: 0.2% IV above 10 in-Hg, whichever is greater
Absolute: 0.1% IV above 10 in-Hg absolute

Resolution:
Below 100 psig: 0.001 psig
100 to 1,000 psig: 0.01 psig
1,000 to 10,000 psig: 0.1 psig

Input Power:
Voltage: 115 VAC, 50-60 Hz
Fuse type: 3AG, 2 Amps

*See Datasheet for system configurations and additional specifications
