AirCube - Model HE Iso -Automatic Real Time Isokinetic Sampler with touch screen interface

• HE ISO sampler with “Touch Screen” interface

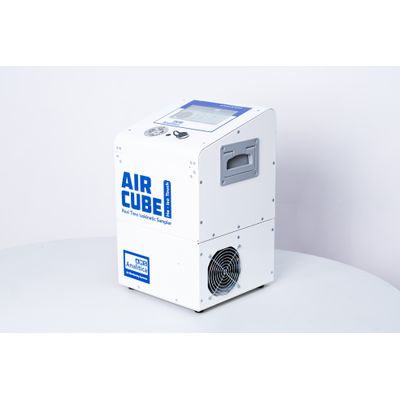

  It is the new model of real time isokinetic sampler that integrates in a single instrument everything necessary for a correct and complete evaluation of pollutants from industrial emissions. The interface with a large graphic color touch screen display allows the user to keep in the foreground all the parameters necessary for the correct execution of the sampling, controlling the sampling conditions as well as those of the duct. The user can simply set the basic data such as stack size and gas density, generate a library of programs for different sampling applications, store in the memory the type of pitot tube and the related constants, check the operating status of the probe and the filter holder box , check the turbulences at individual points using an automatic transducer or simply enter the data manually. All this in a single compact and easily transportable instrument. The AirCube HE Iso Touch sampler is supplied as standard with a 6 m3 rotary pump.

•  Sampling system compliant with the requirements found in official references such as EN-13284, EN-16911, EN-1948, EN-23210, US EPA M5, US EPA M17, US EPA M1 and M2, US EPA M4 and US EPA M201A.

  • Compliance for the measurement of isokinetic parameters as required by EN-16911 and EN-15259 standards

  • Management of three users for probe heating, filter box and auxiliary heated line for gas analyzers

  • Automatic calculation of sampling points with the option of additional points or setting them in manual mode

  •Management of an external sampler via Bluetooth interface for branch line sampling (EN-14385, EN-1911, EN-13211, EN-21877 EN 14791) and automatic calculation of sampling conditions.

  • Graphic visualization on the display of the correct positioning of the probe in the sampling points

  • Automatic calculation or manual entry of the nozzle diameter to be used

  • Digital volumetric meter with 1% resolution (optional ISO 17025 certification) compliant with EN-14236:2018

  • Calibration validation by the accredited reference laboratory

  • Double internal protection trap for particulates and liquids with alarm

  • Calculation of the stack water content with psychrometric method (EPA 4) with Water-Check system (optional)

  • 7” high resolution backlit graphic color touch screen display

• Determination of isokinetic parameters compliant with ISO-CEN 16911, US EPA M1 and M2
  Flow rate calculation for PM10 and PM2.5 sampling according to US-EPA 201A and EN-23210
  Automatic calculation of traverse points according to EN-13284:2017 ISO-CEN 16911, EN 15259, US EPA M1 and M2

• Automatic and manual sampling nozzles selection

• Isokinetic Protocol compliant with ISO-9096, EN-13284 and US EPA

• Automatic calculation of the SWIRL angle with three-axis transducer (optional), Flow and constant calculated automatically without adding data in manual mode
  Automatic calculation of turbulence (WAF) resulting from the stack inner wall effect (EPA 2H)

• Step-by-step settings of sampling parameters in compliance with European and US EPA regulations

• Graphical display of stack diagram and traverse points in real time

• Sampling setup with derived flow with Bluetooth connection to dedicated secondary sampler

• 6m3 single rotary suction pump

• Suction flow range between 5 and 60 liters per minute with automatic compensation of pressure drops

• Double internal protection trap for particulates and liquids with alarm

• 4 connection for temperature detection (Stack, Impinger, Condensate and Filter Holder)

• Flow control with 1% precision digital volumetric meter (available with optional certification) with direct temperature and pressure reading compliant with EN-14236:2018

• Large 7" Touch Screen color graphic display

• Atmospheric barometric pressure sensor range 500-1100 mbar (RES. 0.01 mbar)

• Static pressure sensor

  - Measuring range (FS): +/- 1000 mm/H2O

  - Resolution: 0,1 mm/H2O

  - Accuracy:

  - 0.9% on scale (FS) 0..100 mmH2O with readings below 010 mmH2O

  - 0.8% on scale (FS) 0..300 mmH2O with readings below 030 mmH2O

  - 0.8% on scale (FS) 0..700 mmH2O with readings below 070 mmH2O

• Differential pressure sensor:

  - Measuring range(FS): 0-100 mm/H2O

  - Resolution: 0,01 mm/H2O

  - Accuracy:

  - 1% on scale (FS) 0..20 mmH2O with readings below 010 mmH2O

  - 0.5% on scale (FS) 0..50 mmH2O with readings below 030 mmH2O

  - 0.3% on scale (FS) 0..100 mmH2O with readings below 070 mmH2O

• Thermocouple sensors selectable between K, J, S
  4 thermocouple inputs up to 1100°C - Res. 0.01°C
  Ambient conditions

  • Temperature -10°C % +50°C

  • UR 95% non-condensating
  Output data option RS232, BlueTooth, USB
  Internal memory with SD Card: standard 32 Gb
  Dimensions 27x27x42 cm (WxDxH) - Weight 18 Kg
  Power supply 220 V-AC

Sampling mode settings

• Seven pre-set tests divided into:

• Manual sampling

• Semi-automatic isokinetic sampling

• Automatic isokinetic sampling

• Isokinetic sampling for cyclone or cascade impactors

• Sampling for real-time humidity determination

• Flow rate measurement over the entire chimney section

• Air velocity measurement for each single point with turbulence control

 Parameter settings

• Calculation of gas density (dry/wet)

• Nozzle calculation

• Calculation of relative humidity in chimney with automatic correction on density

• Calculation of turbulence (SWIRL) and wall effect (WAF)

• Leak test

• Automatic or manual “Purge” time setting at the end of the cycle

• Setting the values for probe heating, heated box and auxiliary line

 Alarm settings

• Temperature and pressure sensors (acoustic and display)

• Liquid entry into the trap (acoustic and display)

• Isokinetic index anomaly (acoustic and display)

• Pump and inverter fault (acoustic and display)

• Automatic restart with data saving in the event of a power failure

 Data download to PC

• PC display of sampling parameters

• Average sampling point values

• Average values for single sinking point

• Isokinetic index trend graph

 Display interface

• Color graph with 7" "full touch screen"

• Graphic display of sampling points with their distance from the edge

• Display of sampling points carried out and those to be completed with color coding

• Menu lock for data protection

• Data entry of sampling site and operator

• Insertion of the filter type and possible serial number

• Reserved menu for sensor offset correction

 Integration for sampling with derived flow

This application is mainly requested within the European Community and concerns the situation of having to also use a bubbling system when the sample adsorbed on the filter is not sufficient to provide a global evaluation of the pollutants. If impingers are used, the flow rate through them must be between 0.5 and 3 l/min. This option in some cases (low speeds of the gaseous effluent) can be decisive, especially if associated with the need inside the UNI EN 13284-1:2017 to use nozzles with a diameter of no less than 8 mm. In these cases it may be convenient (or necessary) to proceed with derived flow sampling, keeping in mind that the ratio between main flow and derived flow must remain constant within ±10%. AMS Analitica offers the AirCube COM2-Touch sampler with an intelligent interface dedicated to the AirCube HE-Iso isokinetic sampler. The two samplers communicate in Bluetooth and WiFi mode, leaving control of the sampling procedure to the main sampler (HE-Iso).
