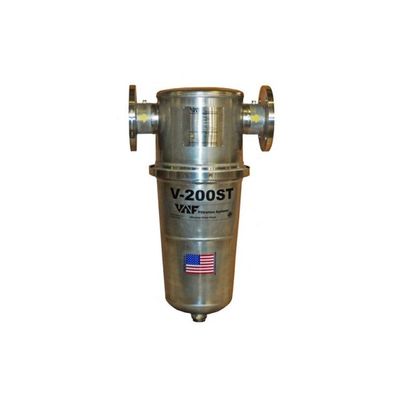

VAF - Model V-200ST -Automatic Screen Filter

The V-Series^TM patented drive mechanism used in the V-200ST is the most efficient and simplistic design available resulting in:

• Fewer moving parts
• Simpler controls
• Lowest flush flow rates and volumes available
• No power required
• Multiple pass cleaning
• Limited maintenance requirements

Constructed using glass reinforced nylon and 316L stainless steel, the inherently corrosion resistant materials ensure a long service life under a wide range of water quality conditions.  Duplex stainless is available for seawater applications.

The 10 to 15 second flush cycle is automatically initiated when a pressure differential across the screen increases to a maximum of 0.5 bar (7 psi). The filter remains on-line, and the filtration process remains uninterrupted during the cleaning process. The flush discharge is the lowest available resulting in minimal waste.

Process water, cooling tower filtration, pre-filtration of membrane, irrigation, or wherever suspended solids are removed down to 10 micron are applications perfectly suited for the V-200ST.
