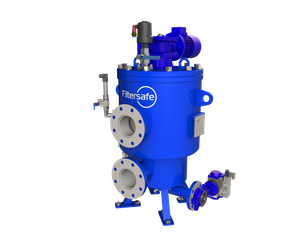

Filtersafe - Model Manta -Automatic Self-Cleaning Filter
FromFiltersafe Ltd.
The Filtersafe MANTA Automatic Screen filters utilize our unique, market-proven, and cutting edge patented technologies smartweave™ filter screens and nozzlex® proximity suction nozzles ensuring the high-performance demands of the market are met.Most popular related searches
automatic self-cleaning filter
filter cleaning
automatic screen filter
self-cleaning filter
screen filter
bolt seal
cleaning nozzle
- Low Recovery Rate - Maintains Filtration Efficiency
- 100% Screen Cleaning with Each Revolution
- Ease of Maintenance & User-Friendly Operation
- Small Footprint & Service Space
- Cost-Effective
- Compatible With Existing BWMS
- Removes 99.6% of Organisms Over 50 μm

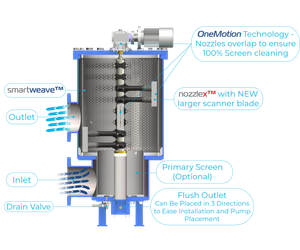

- Proximity Nozzle + Unpleated Screen = 100% Screen Cleaning
- Up to 500 m³/h Max. Flow Rate
- 25 μm Filtration Degree
- 6.9 bar Pressure Rating
- 1.5 bar Min. Operating Pressure
- In-Line & Vertical Configuration
- Up to 16,200 cm2 filter area
- Temp 50°C
- Remove the drive unit (4 bolts), the seal housing (4 bolts) then the lid (20 Bolts).
- Pull out the scanner, then the screen – easy and no complications.
- To put back just reverse these actions – it’s as simple as that.

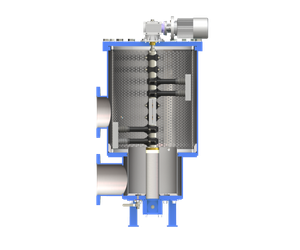

How our Filter Cleans While In Operation:
- The removable primary screen prevents large objects from entering the filter body.
- Organic matter and debris begin to build up on the screen interior. Once a differential pressure of 0.3 bars is reached the automatic cleaning sequence is initiated.
- The filter remains in operation with downstream flow remaining consistent during self-cleaning.
- Overlapping proximity nozzle heads cover the entire surface area of the screen’s interior, fully cleaning the screen in one rotation.
- The cleaning sequence finishes and the filter continues to filter as normal.
