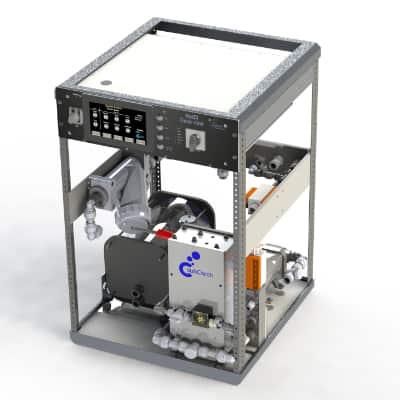

OceanPack Cube - Automatic Self-Cleaning System

FromSubCtech GmbH

SHARE

Optional external module for OceanPack CUBE to clean the water supply automatically. Two motor-ball valves are used to run the water in a circle. Acid is used to remove fouling very efficiently. If tap water is available, another phase of cleaning with tap water is included. The cleaning can be fully configured to your needs and is suitable for mostly any sensors such as pH, pCO2 etc. Not harmful for the environment. Fully installed and pre-programmed.

Most popular related searches

motorized ball valve

meteorology sensor

safety regulations

ocean monitoring

Cleaning time: Once per day for 30 min., user-configurable
Valves: 2 x motor-actuated ball valves
1st stage: Light acid cleaning, min. pH 4
2nd stage: Tap water cleaning, if available.
Acid tank: 4 to 12 weeks of unintended operation

New form factor: the 19-inch rack format allows the mounting of 19-inch standard frames
Touch Screen: the new 7” touch screen enables an intuitive control of the device, comparable to a simple mobile phone. No external screen or keyboard is necessary any more
New controller unit and data logger technology: NetDI replaces SmartDI. The industrial ARM processor guarantees a stable computer environment according to functional safety guidelines IEC 61508 and highest performance at the same time. We use industrial components only, in order to ensure long-term availability of our product
Fast data download or upgrades with USB
New power concept: 24 VDC converter is integrated into the instrument. A new UPS (uninterrupted power supply) allows a save operation on ships or places with an unstable power supply
Only standards: the simple ASCII NMEA-0183 data protocol is used for storage on the 32 GB SD card and real-time output. The high-precision real-time-clock follows ISO 8601.
It comes with its own flight case for fast and safe shipping

GPS receiver and geo-referencing of all data
Real-time data transfer and alarm services
OceanView™ DataServer run on a Windows^® PC
External accessible RS-485 Bus extension to connect a wide range of devices such as meteorological sensors, pumps or valves
Additional sensors, analyzers, water samplers and more on request
