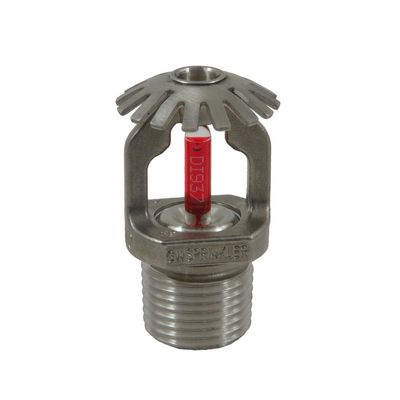

GW–S - Model 15mm, K-80 -Automatic Sprinkler CUP (Upright/Pendent) Standard Response
The GW-S sprinkler series offers high quality, European manufactured, modern compact design, that meet the rigid test requirements set out by the world leading approval authorities. The unique GW PTFE / double groove seal in combination with high end heat responsive frangible glass bulbs guarantee durable operation and reliable performance. All manufacturing and testing processes are performed strictly in compliance with our quality management system, certified to ISO 9001. All metallic components are 100% manufactured from stainless steel.
- Style: Conventional - Upright/Pendent
- Thread: 15mm (1/2") NPT, (BSPT optional)
- K-factor: 80 (5.6)
- Bulb: 5mm standard response / RTI > 100
- Material: stainless steel SS316 or SMO (6Mo)
GW-S CUP standard response sprinklers are used in fixed fire protection systems. Care must be exercised that RTI, orifice size, temperature rating, deflector style and sprinkler type is in accordance with the latest published sprinkler installation standards i.e. EN12845, CEA4001 or NFPA13.
The CUP (conventional upright/pendent) type sprinkler will pass approximately 50% of the water in the flow direction, and reverse spray 50% - generating a spherical spray that will also wet/cool the ceiling.
- Style: CUP (Conventional Upright/Pendent)
- RTI-Value: RTI > 100, Standard Response A
- Glass Bulb Diameter: Ø 5 mm
- Temperature Rating: 57, 68, 79, 93, 141, 182, 260°C
- Orifice: Ø 11 mm
- K-Factor: 80 lpm / bar1/2
- Nominal Thread: 1/2” BSPT or NPT, length: 14mm
- Max. Working Pressure: 12 bar
- System Test Pressure: 20 bar
- Factory Test Pressure: 35 bar
- Weight: 60 grams
- Overall Length: 52 mm
- Deflector Diameter: Ø 32
- Material Option 1: SS316
- Material Option 2: SMO / 6Mo
- Finishes: Natural (stainless steel)
- SS304/316 escutcheon / rosette
