Prolin Hydralink - Model PHORS10 -Automatic Tank Cleaning and Oil Recovery System

All electric motors and the system control panel  are rated EExd for Zone 1 refinery use.

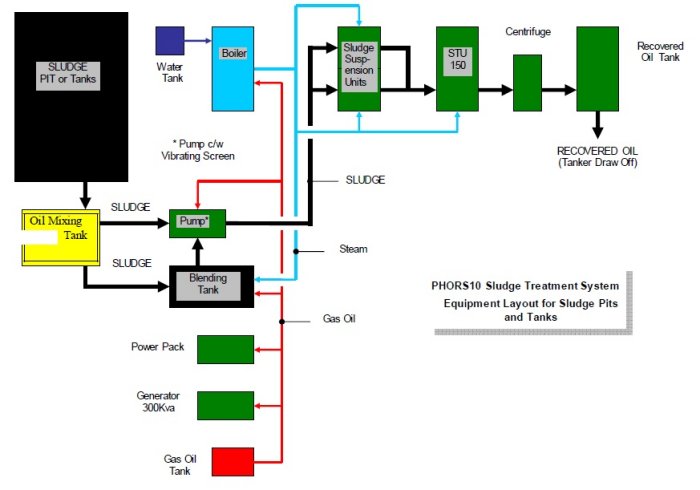

The PHORS 10 unit includes:

• Heated pre treatment system with heavy duty, electric drive agitator for effective recirculation and re-suspension of solids in the sludge. Pre treatment tank has large external level indicator and high/low level alarms.
• electric drive agitor for effective recirculation and re-suspension of solids in the sludge. Pre treatment tank has large external level indicator and high/low level alarms
• Heavy duty, variable speed electric drive Centrifuge Feed Pumps. Main pump plus standby pump hard piped and wired into control system for continuous working.
• Chemical Dosing System for improved performance and treatment of a wide range of waste oil sludge materials.  System includes twin half metre mixing and holding tanks with electric drive agitators and variable speed dosing pump.

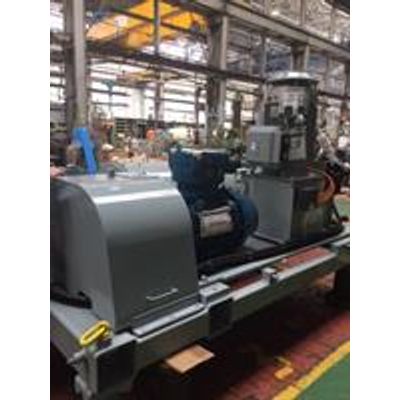

• Purpose built, heavy duty two phase Centrifuge to remove solids from the pre treated sludge and reclaim good quality oil suitable for pumping directly back to refinery storage facilities.
• Centrifuge system includes comprehensive control and alarm systems wired into system Control Panel
• Centrifuge supplied complete with sediment and recovered oil chutes.
• Purpose built centrifuge support frame designed for fast and simple site erection and which allows safe access around centrifuge for routine maintenance.
• Electrically driven VISCOTHERM Power Pack for centrifuge drive and control.  Unit wired in to centrifuge control panel for safe and simple operation.
• Recovered Oil Holding Tank (3.5m3) with large external level indicator and high/low level alarms.
• Heavy duty, variable speed electric drive Sludge Feed Pump for sludge feed to PHORS 10 Unit
• Heavy duty, variable speed electric drive Recovered Oil  Pump to transfer reclaimed oil into adjacent storage tanks or directly back into the refinery system
• All equipment is wired into main Control Panel for safe and simple operation.  All feed pumps stop/start wired into integrated high/low level alarms.
• System designed for on site operation in remote locations and has all maintenance items easily accessible.
• Comprehensive operating and maintenance manuals.
• Dimensions and Weights: 13.411m long x 2.438m wide x 2.895m high
• Weight: Dry:  13,000 Kg
• Operating: 33,000 Kg

Utilities Required:

• Steam: 4,500 Kg/Hour at 10 bar max
• Electricity: 415 V 3 phase 300 KVA
• Water: Typical fire hydrant supply for chemical dosing system and wash down

Typical crude oil sludge processing rate 10-25³/hour depending on sludge quality

Recovered oil will contain2% or less BS&W and the Sediment or solids remaining after processing will have 100ppm or less of leachable hydrocarbons

• PHORS10 total automatic tank cleaning & oil recovery system that does it all and with no man entry into a tank

• PHORS 10 recovers the good oil from the sludge

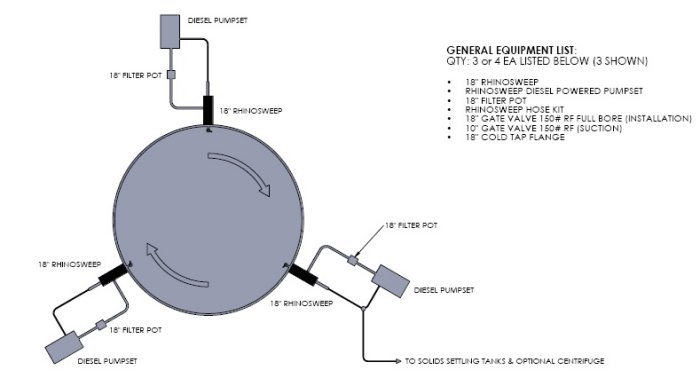

• Pro-line hydralink tanksweeps or manway cannon systems
• Can be used with the phors 10 oil recovery system

• Recovered oil will contain 2% or less BS&W and the Sediment or solids remaining after processing will have 100ppm or less of leachable hydrocarbons
• Processing rate varies according to the incoming quality and desired out going quality but as a general rule 10m3 is a normal throughput giving good quality results
