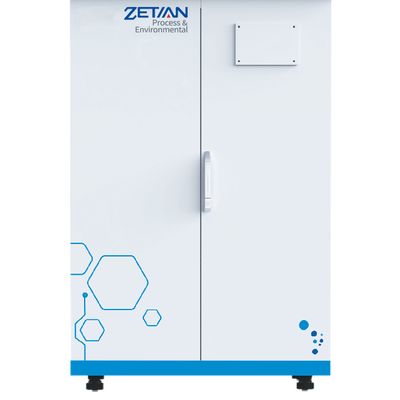

Zetian - Model WDet-9000 -Automatic Water Quality Monitoring System (Micro Station)
The WDet-9000 is a highly integrated automatic monitoring system independently developed by our company on the basis of years of research and development of water quality online analyzers for on-site working conditions. The system has high accuracy, small footprint, and many measurement indicators, which can be comparable to the multi-parameter measurement functions of the conventional four-square water station and eight square water station on the market. It can be configured according to the working conditions to measure the five conventional parameters of water (water temperature, pH, conductivity, dissolved oxygen, turbidity), permanganate index, ammonia nitrogen, total phosphorus, total nitrogen, COD, hexavalent chromium, total chromium, etc. components.he analytical instrument adopts a new measurement principle, and the quantification is accurate; Integrated digestion colorimetric module, more complete reaction and high measurement accuracy;
Display terminal with 15-inch touch screen, beautiful appearance and simple operation;
High level of intelligence, which can realize automatic cleaning, automatic system detection, automatic fault reset, etc.
The equipment is small in size, high in integration, reasonable in internal layout, scalable in monitoring indicators, and convenient in maintenance;
Adopt lightning protection module design to ensure normal work around the clock;
The interior of the cabinet adopts a modular design, which can quickly add or delete measurement components;
Integrated over-standard sample retention system, when the measured value of water quality is abnormal, the system will automatically save it for sampling for laboratory analysis and comparison;
Quality control verification, with standard sample verification, zero sample verification, span verification, parallel sample testing and standard addition recovery functions, each module can support 4 parameters and support expansion;
Five parameter pool cleaning function;
Probe backflush cleaning function.
Weight: 450KG
Dimension: 1250×800×2200 (mm) (L*W*H)
Water Collection Method: Submersible or self-priming pump
Human-computer Interaction: 15-inch touch screen display terminal
Power Supply Voltage: 220±10%VAC, 50~60Hz, 2000W
Environment Requirement: Temperature: -10℃~45℃, Humidity: <95%, no condensation
Communication Interface: RS485, GPRS wireless upload
Communication protocol: Can be customized according to demand
