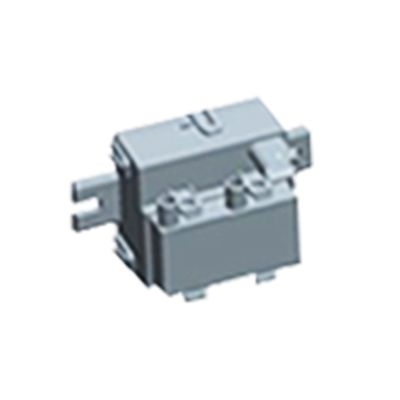

Wuhan Cubic - Model AQIS-1000 -Automotive Air Quality Module

• Long-lifetime laser, more than 100,000 hours；
• High-temperature laser module, constant power output, working temperature can reach 85 ℃；
• It can realize intelligent identification of different dust sources；
• The carbon dioxide sensor has an auto-calibration mechanism；
• It can meet the requirements of accurate, stable and reliable detection of sensors in the driving process of vehicles in various practical and complex road conditions.

• Operating principle: PM: Laser light scattering;CO2: NDIR
• Measured paride range: 0.3μm ~ 2.5μm
• Measurement range: PM2.5: 5~500μg/m³; CO2: 400-5000ppm
• Resolution: PM2.5: 1μg/m³; CO2:1ppm
• PM2.5 Accuracy: ≤30μg/m³, +5μg/m;> 30μg/m³，土15% Reading
• CO2 Accuracy: ≤750ppm,土75ppm;>750ppm.土10% Reading
• Refresh time: ≤1s
• Time to first reading: ≤30s
• Digital output: CAN
• IP rating: IP54
• Noise: ≤35dB(A)@50cm
• Design Lifetime: ≥10,000 hours
• Working condition: 40~+70C .5-95%RH (non-condensing)
• Storage condition: 40~+85C ,5 -95%RH (non-condensing)
• Power supply: 12士0.1V DC (9V~16V DC)
• Working current: ≤200mA
• Quiescent current: ≤100μA

Automotive Air Conditioner

Healthy and good air quality in the car is becoming one of the essential standards for cars.Dust, bacteria, volatile gases and metal particles that are not visible in the air of the car are all factor

Rail Transport

To monitor automotive air quality, Cubic developed various kinds of automotive laser particle sensors, which are OEM basis for customers` demand.
