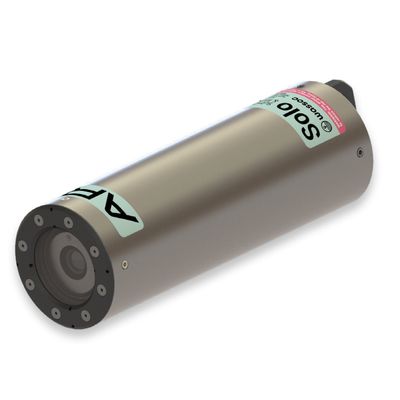

Williamson & Associates - Model ARC -Autonomous Recording Camera

The Solo X Autonomous Recording Camera (ARC) is a full ocean rated, stand-alone, subsea imaging system. The ARC is powered by an internal rechargeable Li-Ion battery and can be programmed for a wide variety of subsea imaging missions. Paired with a Solo X Subsea LED Light (SLL), the ARC can autonomously illuminate and capture HD footage and imagery in ocean depth to 6000 meters.

The ARC is charged and activated through a single subsea connector eliminating the need to open the housing in normal use. Once activated, the ARC performs the programmed sequence until it is de-activated, or the battery is depleted. Wireless programming and data download are accomplished through an intuitive browser-based GUI. In addition to autonomous operation, the ARC can interface with an external system via the RS-232 serial protocol.

Rechargable Li-ion Battery
12mp / 1080p Image Sensor
Wifi Connectivity

• Record 1080p HD Footage
• Capture 12MP Stills (Single and Burst)
• Shutter Speed, White Balance and Gain
• Timelapse Photography
• Subsea LED Light Mode and Intensity
• Integral Depth Switch/Sensor
• Time, Date and Depth Overlay
• Sleep Mode For Multi-Day Deployment

Depth Rating: 6000 meters
Housing: Titanium, 2.75” Diameter x 8.3” long (excluding connector)
Viewport: Sapphire
Weight: 5.8 lbs in air; 4 lbs in water
Camera: 12MP 1/2.3 Backlit CMOS
Lens: 3.9mm Focal Length, F2.8 FOV: 75° (mutiple options)
SSD: 512GB
Electrical: 11.1VDC Nominal, 72Wh Li-ion Rechargable Battery
Comms: RS-232
Connector: SUBCONN MCBH8M
