OceanAlpha - Model SL40 -Autonomous Survey Boat

Dedicated cabin to install instruments like ADCP, ecosounder, side scan sonar with a diameter of 5 to 18cm.

• Both the USV and the survey instruments are controlled by the base station.The USV can complete surveys autonomously and send back data in real-time.

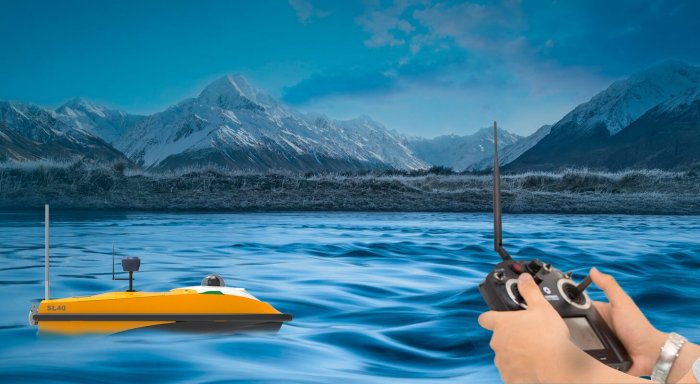

• Operator can also control the USV manually with the remote controller.

In manual mode, operators are able to observe the water environment through a real-time video feed to better avoid obstacles.

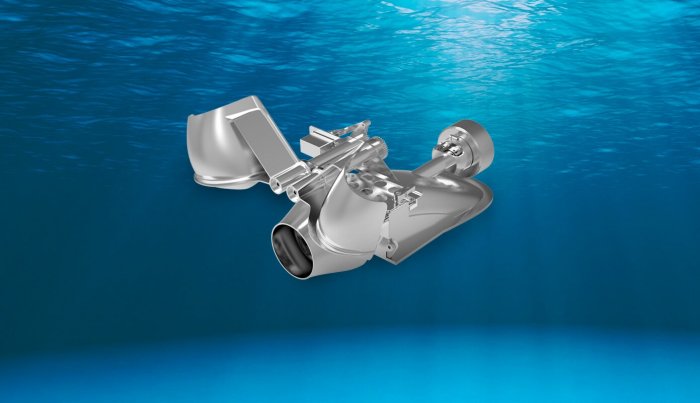

The innovative waterjet propeller allows the USV to sail at 5m/s and effectively avoid being entangled in water plants or rubbish.

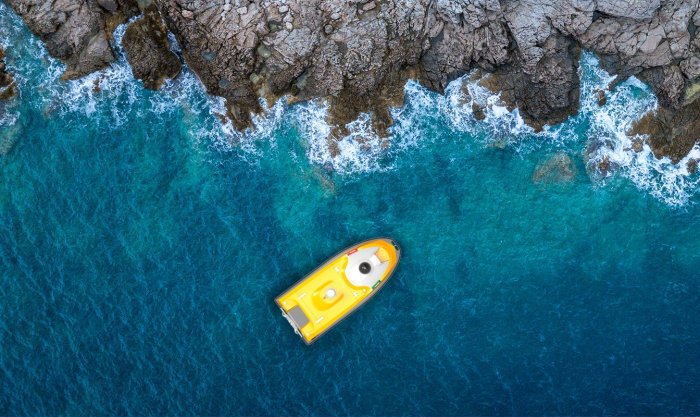

The trimaran hull design improves the USV’s stability while sailing in high speed.

• Dimensions: 1650*700*400mm
• Weight: 35kg
• Material: Carbon fiber
• Communication: Radio and network
• Communication Range: Remote control          1km
• Data Telemetry         2km
• Maximum Speed: 5m/s
• Payload: 15kg
• Video Monitoring: Yes
• Collision Avoidance: Yes
• Multi Missions: Yes
