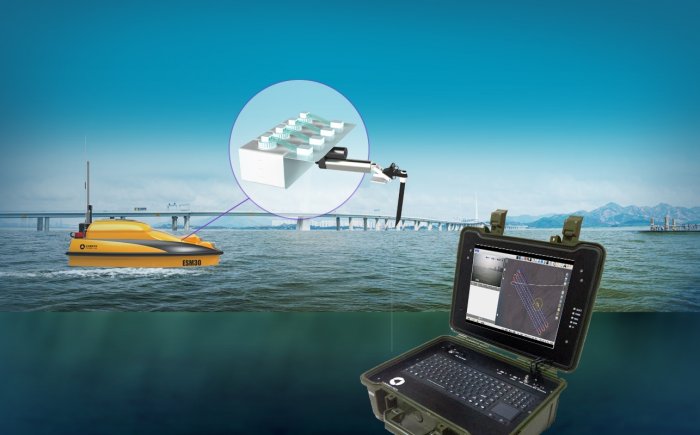

Oceanalpha - Model ESM30 -Autonomous Water Sampling & Monitoring Boat

• The USV can collect 4 bottles of 1.8L water samples from different areas  0.5m under the water’s surface.
• It has 4 separated tunnels to avoid cross pollution.

The sampling and monitoring data can be transmitted to the base station in real-time and generate water quality parameter charts automatically.

• Both the USV and the surveying instruments are controlled by the base station. The USV can autonomously complete surveys and send the data back to operators in real-time.
• Operators can also control the USV manually using the remote controller.

• With the ultrasound sensors, the USV can detect obstacles up to 10 meters ahead to avoid collision.
• In manual mode, operators can observe water environments using a real-time video feed to better avoid obstacles.

• Dimensions: 1150*750*430 mm
• Weight: 31 kg
• Material: Fiberglass composite with Kevlar&carbon fiber
• Obstacle Avoidance: Detect obstacle within 10m
• Communication Range: Autopilot: 5km    Remote Control: 2km
• Sampling Capacity: 1.8L * 4
• Water Sampling Depth: 0.3-0.5m
• Water Monitoring: Temperature, pH, DO, conductivity, turbidity,etc. Depends on sensor configuration
• Maximum Speed: 1.5m/s
• Endurance: 3 hours
