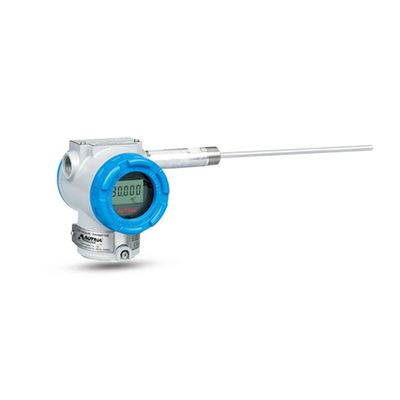

Autrol - Model ATT 2100 -Smart Temperature Transmitter
The ATT 2100 Smart Temperature Transmitter is a microprocessor-based high-performance transmitter, which has flexible sensor input and output, automatic compensation of ambient temperature and process parameters, the configuration of various parameters, communication with HART protocol.
Most popular related searches
temperature transmitter
level monitoring
water mains
pressure level monitoring
flow monitoring
temperature field transmitter
thermocouple
pressure monitoring
- Type: Temperature Transmitter(TIT), Field Mounting Type
- Certificate: Ex d, FM, ATEX, TR CU(EAC), CE, KCs, IP66/67.
- Feature: 4 to 20mA, HART, Loop Powered
- Digital Accuracy: RTD ±0.17 ?, T/C ±0.77 ?. 3 lines LCD display, Self Diagnostic Function, External Buttons, DAC, Zero Trim, Eng mode
- Input: RTD input: a=0.00385(KS, JIS, DIN, IEC), a=0.00391(US)
- Thermocouple input: KSC 1602-1982, JISC 1602-1981, ANSI MC96.1-1982 Millivolt, ohms
- Application: Pressure, Flow, Level measurement for Oil & Gas, Liquid, Water, Maine & offshore, Vessel, Power, Chemical Plants, and Refinery
- Excellent Accuracy, Long-Term Stability
- Selection of various T/C, RTD, mV, Ohm. Data Configuration with HART configurator.
- Automatic Compensation: Linearization of sensor input, Ambient temperature compensation, Continuous Self-Diagnostics, Fail-mode Process Function, EEPROM Write Protection
- Model Name: ATT2100
- Protocol: Digital Communication, HART 5, 7
- Trim ability: Zero, DAC
- Power supply & Load Requirement: 250 to 550 ohm @ 24 Vdc, Loop Powered
- Failure Mode: Low ≤ 3.78 mA, High ≥ 21.1 mA
- External Buttons: Zero & Span 2 buttons for device configuration
- Ambient Temp. limit: -40 to 85? ( -104 to 185? )
- Stability: RTD – 2 years (±0.12% of Reading or 0.15? whichever is greater), T/C – 1 year (±0.12% of Reading or 0.15? whichever is greater)
