Avic - Model BasicGate -All-Round IoT Device

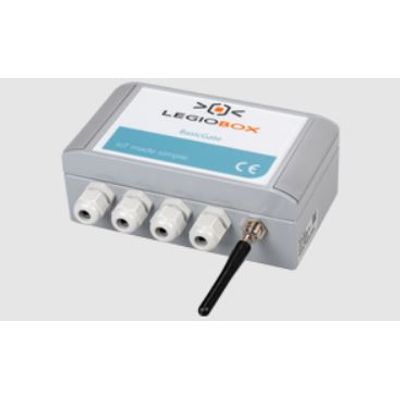

The LegioBox BasicGate is Avic’s all-round IoT device for stand-alone operation in industrial environments. It can be powered either from universal AC mains or 24 VDC, supported by an internal back-up battery. The LegioBox BasicGate can either connect to a local area network (Ethernet), or through cellular networks using its 2G/3G or LTE modem. The LegioBox BasiGate supports a multitude of industry-standard process interfaces, as well as data communication ports. The LegioBox BasicGate allows any of its six analog sensor interfaces to be configured as 4-20mA current, Pt-1000 thermometer, or 0-10VDC voltage sensor. In addition, the LegioBox BasicGate provides four digital inputs, as well as 8 user-definable LED indicators. Sensors and other peripherals can be connected to the LegioBox BasicGate in any arrangement. Protected by a robust die-cast aluminum enclosure, the LegioBox BasicGate is designed to work in heavy-duty industrial environments. Mounting accesories are available to ensure that the LegioBox BasicGate is securely installed during operation.
