Oriental Electronics, Inc.

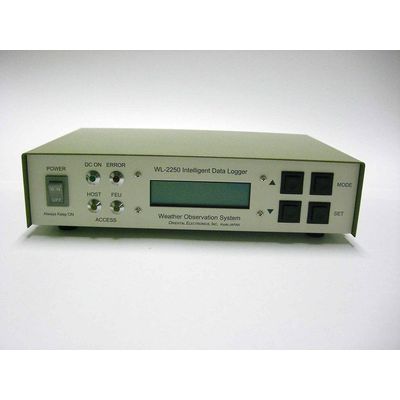

ORIE - Model WL-2250 -AWS Data Logger
The WL-2250 is an AWS data logger with powerful networking capability connectable with various IP networks such as ADSL, FTTH, cellar, WiFi radio and satellite communication links. The logger consists of two parts as a Front-End Unit (FEU) and a main body wired with a regular UTP cable between them.
Most popular related searches
- Since FEU has built-in instrumentation interfaces, various sensors such as wind, temperatures, humidity, air pressure, precipitation or radiations can be connected to FEU directly.
- All sensor signals can be quantized by high-precision ADC, 10Hz each in FEU and transmitted to the logger via a UTP cable.
- The logger can make linearization of sensor data and primary statistical processing such as mean, max/min, time of occurrence, standard deviations and etc.
- Data shall be recorded based on BUFR format in the logger and transferred to the host server through various IP networks.
- GPS receiver can be mounted on the logger and enable to use accurate time and location information.
- The logger operates with DC12V low power.
