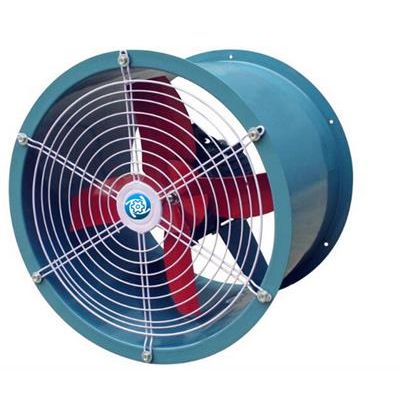

Decent Machinery - Model T40 -Axial Fan Blowers
T40 fan is designed on the basis of model 30K4 (also known as model 03-11) fan. As the airfoil of the original 30K4 fan was modified and a new type of cylindrical wheel hub was adopted, the air efficiency of the T40 fan was increased from 69% to 84%, and the strength at the blade root was enhanced, thus avoiding the occurrence of leaf root fracture.
The T40 ventilator can be used for general ventilation in factories, warehouses, offices and houses, or for heating and cooling.If the housing can be removed can be used as a free fan.lt can also be installed in series at intervals within a longer exhaust pipe to increase the air pressure in the pipe.
The series of products, according to the different impeller diameter was divided into 10 number, lined up for NO. 2.5,3,3.5,4,5,6,7,8,9,10, etcEach number (blade can be installed into 15 °, 20 °, 25 °, 30 °, 35 ° by five aspects.
This series of products all adopt the direct connection structure of the impeller directly mounted on the motor shaft-Under the condition that the circumferential speed of the impeller does not exceed 60m/s, three revolutions are used: 2900,1450 and 960 revolutionsfaiin.The impeller turns counterclockwise when facing the inlet direction.
Due to the differences in blade diameter, blade installation Angle and spindle speed, the air pressure and consumption power are different. The air pressure is 31-473pa and the air volume is 564-48200 m/h (see performance table for details).Through the fan should be no corrosive gas and dust, its temperature should not
exceed 45 °CThe fan is composed of impeller housing and air collector
