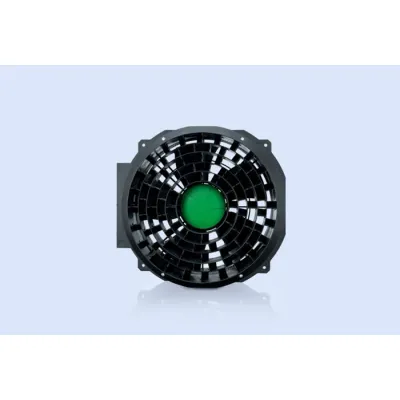

ebm-papst - Model AxiCool -Axial Fans for Hygienic Cooling Applications
The AxiCool axial fan series from ebm-papst is designed for cooling and preserving goods under hygienic conditions, making it suitable for a wide range of applications. Featuring a high degree of protection up to IP 54, these fans offer splash water resistance and smooth surfaces that prevent dirt accumulation. The fans incorporate a hinge function, facilitating the cleaning of heat exchangers in compliance with HACCP regulations by simply loosening the screws and folding away the fan. The technical specifications include operating voltages of 200-277 V for single-phase and 380-480 V for three-phase, frequencies of 50/60 Hz, and an airflow rate of 3,000–25,000 m³/h. The power consumption ranges from 1 to 3,100 W, and they are applicable for areas up to 300 Pa. Employing EC technology, they offer various control and regulation functions. Components include a protective grille, wall ring, and blades made from PP plastic, a surface-passivated rotor, and an electronics enclosure made from die-cast aluminum.
The AxiCool axial fan series was developed for cooling and keeping goods fresh under hygienic conditions. They are also suitable for other applications.
One advantage is the high degree of protection up to IP 54 (splash water protection). The smooth surfaces prevent dirt from sticking. The hinge function also makes it easier to clean heat exchangers in accordance with HACCP regulations. The screws are loosened and the fan is folded away.
The AxiCool axial fan series from ebm-papst can
- with an air volume of 3,000 m³/h to 25,000 m³/h,
- at a counter pressure of 40 Pa to 300 Pa,
- with a size of 300 mm to 800 mm,
- from a sound power level of 59 dB(A),
- at an operating temperature of -40 °C to 40 °C,
- with a rated voltage of 200 V – 277 V (single-phase) or 380 V – 480 V (three-phase)
- and at a frequency of 50/60Hz
be operated.
- Voltage ; 200 V – 277 V (single-phase) or 380 V – 480 V (three-phase)
- Frequency ; 50/60 Hz
- Air flow rate ; 3.000 – 25.000 m³/h
- Power consumption ; 1 – 3.100 W
- Application area ; Up to 300 Pa
- EC technology ; Various control and regulation functions
- Protective grille ; Black plastic-coated (RAL9005), Steel, phosphatised
- Wall ring ; PP plastic
- Blades ; PP plastic
- Rotor ; Surface passivated
- Electronics enclosure ; Die-cast aluminium
