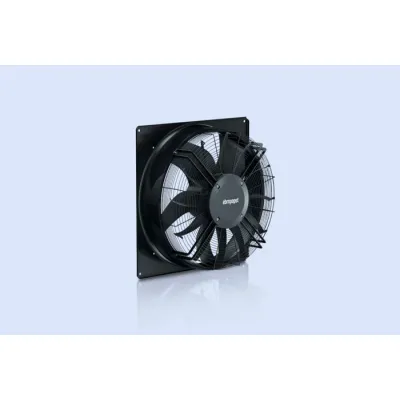

ebm-papst - Model AxiBlade Series -Axial Fans for Industrial Applications
The AxiBlade series from ebm-papst delivers enhanced performance and efficiency with reduced noise levels compared to the HyBlade axial fans. The fan system includes a FlowGrid, wall ring, impeller, GreenTech EC motor, electronics, guide vane, and protective grille. The guide vane optimizes air performance while the FlowGrid minimizes noise. The impeller's blade geometry and winglets further boost efficiency and lower sound pressure by up to 8 dB(A). These fans are versatile, used in a variety of applications such as condensers, cooling towers, evaporators, and heat pumps. Custom options include programming and specialized connectors. Technical specifications for the AxiBlade series include voltage of 380-480V, frequency of 50/60Hz, airflow rate of 4,500-35,000 m³/h, and power consumption of 640-3,200W. The fans are constructed with materials including PP plastic blades, a die-cast aluminium electronics enclosure, and a black-painted rotor. Additional features include various EC technology control functions, a protective grille, and a galvanized steel wall ring.
The AxiBlade axial fan series from ebm-papst can
- with an air volume of 4,500 m³/h to 35,000 m³/h,
- at a counter pressure of 50 Pa to 380 Pa,
- with a size of 630 mm to 910 mm,
- at an operating temperature of -25 °C to 60 °C,
- with a rated voltage of 380 V – 480 V (three-phase)
- and at a frequency of 50/60Hz be operated.
The AxiBlade series from ebm-papst offers higher performance and higher efficiency, with a lower noise level, than the proven HyBlade axial fans.
AxiBlade axial fans consist of a FlowGrid, a wall ring, the impeller, a GreenTech EC motor, electronics, a guide vane and a protective grille.
The guide vane increases the air performance and the FlowGrid reduces the noise level (rotary sound). The impeller can increase efficiency thanks to its profiled blade geometry and winglets. This impeller optimisation also reduces the noise level.
With this system, ebm-papst offers a reduction in sound pressure of up to 8 dB(A).
Axiblade axial fans are used in condensers, cooling towers, evaporators, transformer stations, catch grids, heat pumps, oil coolers, process cooling systems and many other areas.
We offer not only standard products, but also customised special versions. These can include, for example, a wider temperature range, customised programming or a special cable and connector design.
The blades are flow-optimized so that they offer higher efficiency at a lower noise level compared to conventional blades. An optional control system can be used to improve the noise values depending on the area of use and application.
In addition, ebm-papst HyBlade axial fans are characterized by optimized efficiency, improved corrosion protection, low weight and environmentally friendly production with a favorable energy balance.
The axial fans are used in almost all sectors for refrigeration, air conditioning and ventilation technology as well as in mechanical engineering, for heat pumps and much more.
We offer not only standard products, but also customised special versions. These can include, for example, a wider temperature range, customised programming or a special cable and connector design.
- Voltage : 380 – 480 V
- Frequency : 50/60 Hz
- Air flow rate : 4.500 – 35.000 m³/h
- Power consumption : 640 – 3.200 W
- Application area : Bis 380 Pa
- EC technology : Various control and regulation functions
- Protective grille : Black plastic-coated (RAL9005), Steel
- Wall ring : Black plastic-coated (RAL9005), Galvanised steel plate
- Blades : PP plastic
- Rotor : Black painted surface
- Electronics enclosure : Die-cast aluminium, black painted
