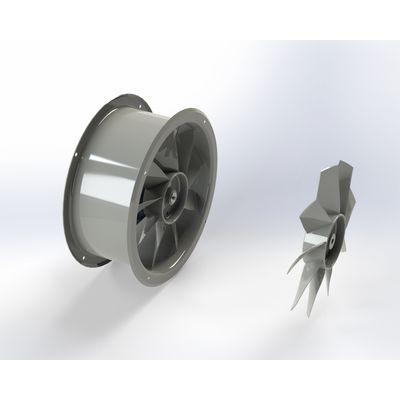

Euroventilatori - Model EVF Series -Axial Flow Fan

• Use: for the suction of big volumes of exhaust air at low pressures. The helicoidal fans of the EVF series are suitable for the suction of smokes, as well as exhaust, dusty and damp air in the foundries, cement factories, paper factories and joinery works; for the ventilation of rooms; for drying paper, wool, pasta, tiles; in the application to radiators, unit heaters, cooling towers, etc. and where it is necessary to transport big volume of air with low pressures.
• Temperature: minimum - 20°C, maximum + 60°C.

GO TO LIVE CURVE

• Air flow: 22-39m3/min
• Inlet pressure: 4.4-10kg/m2
• Outlet pressure: 4.8-11kg/m2
• Engine installed: 63 B-4poles
• Installed power: 0.18KW
• Rotation speed: 1350round/min
• Limit speed: 1400round/min
• Fluid type: Clean
• Inlet flange: ?315mm
• Outlet flange: 315xN/Amm
• Weight without engine: 7.5Kg
• GD2: N/AKgm2

General notes:
Uses of Variable Speed Drives please pay attention to the possible overheating of the motor due to a lower rpm/Hz than recommended by the motor supplier.
