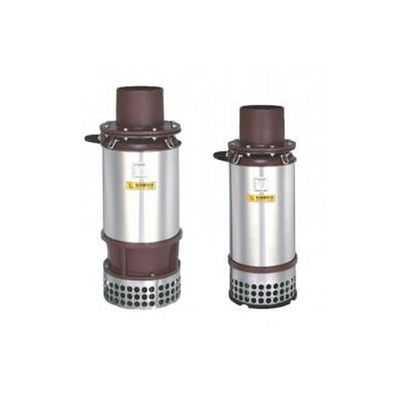

SONHO - Model BLS Series -Axial Mix Pump
Axial mix pump application: aquaculture pumps, agricultural irrigation, fish and shrimp drainage, pumping stations, sewer drainage, industrial flood control and so on.
Most popular related searches
axial pump
drainage pump station
pump station
water cooling
drainage pumping
drainage pump
flood control
sewer pump station
water extraction
industrial drainage
- Output: 7.5HP~20 (5.5kw)
- Discharge: 8"~10" (inch)
- Phase: 3?
- Capacity: 2.8~4.0 (m3/min)
- Head: 5.5~11 (m)
- Motor frame and casing are made of stainless steel and water- cooling jacket design increases efficiency of heat diffusion.
- Stainless steel shaft is calibrated in dynamic balance test. Dual mechanical seal SIC/SIC are fitted and dual oil seals design raises effects of dust-proof.
- Mix flow design to meet large flow capacity, energy saving and easy installation.
- Inner cable wires and cable base are upgraded by filling EPOXY to raise humidity-resistance.
- BLS is the range for particular purpose of pumping station, and for both two uses of water delivery and extraction.
