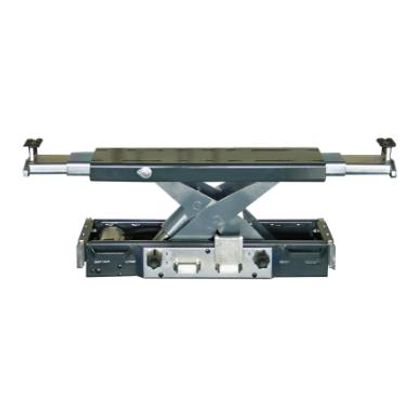

Maha - Model AL II 2.6 PH S VP 985063 -Axle Jack
FromMaha USA L.L.C.
The axle jack has proved successful thanks to its robust, tried and tested technology and is suitable for a load capacity of up to 2.6 t. Operation is either via manual hydraulic or hydro-pneumatic system. The axle jack can be supplemented by a wide range of accessories.
Most popular related searches
- Narrow axle jack with large cross-beam extension
- Powder coating in RAL 7016, anthracite
- incl. carriage
- incl. air supply set (spiral hose, guide rope)
- incl. 2 rubber pads for lifting brackets
- incl. 3 lift extenders measuring 10 / 45 / 85mm
- Load capacity: 2600 kg at 8.5 bar
- Min. / max. operating pressure: 8.5 bar / 12 bar
- Minimum air quantity: 500 l/min
- Stroke (effective stroke): 250 mm
- Extension length: 780 - 1610 mm
- Max. protrusion above runway: 70 mm
