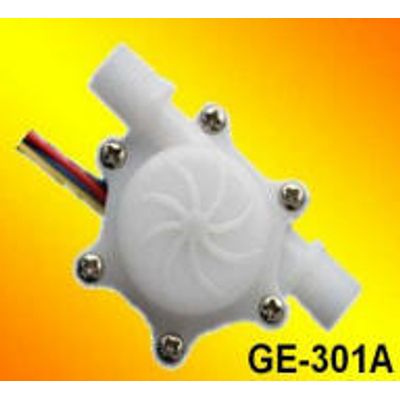

A.YITE - Model GE-301 -FDA Plastic Flow Sensor
FromZHOU ENSI LTD
The plastic flow sensor is produced by POM matrail, achieving the FDA standard, widely used in RO water instrument, dispenser water, water heating systerm, drinking water systerm, potable liquid flow monitor system, to calculate the flow rate. International Protection could be IP68 (Optional).
Most popular related searches
liquid flow monitoring system
flow sensor
flow monitoring system
liquid flow monitoring
water heating
reverse osmosis water
flow monitoring
drinking water
water dispensing
water dispenser
- POM Material, accord with FDA Standard
- Pipe Size: 1/4", Clamp-type Barb fitting (6mm)
- Flow Range: 0.1L/mim ~ 4.5 L/min
- Voltage: DC3V ~ DC18V DC5V is standard
- Pulse duty factor: 50 %
- Accuracy: 3%FS
- High Level of Pulse Output: >4.5V (DC5V)
- Low Level of Pulse Output:
- Max Pressure: 8.0bar
- Insulation Performance: 100M ohm
- Size: 62*42*25/53*42*25mm
- Hall Component, made in Japan
- OEM ODM Custom-made is acceptable
