A.YITE Technology

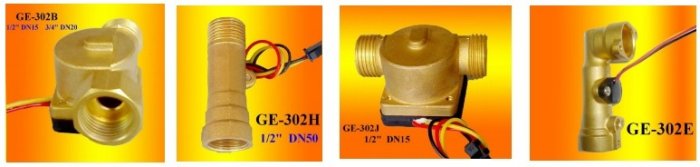

- Model GE-302 - Brass Water Flow Rate Sensor


The water flow monitor sensor is produced by Brass matrail, stability and sensitive, widely used in HVAC systerm, water heating systerm, water treatment systerm, to calculate the flow rate.

  • Brass Material, High Stability
  • Pipe Size: G1/2', G3/4'
  • Flow Range: 1L/mim ~ 30L/min ~ 60lL/min
  • Voltage: DC3V ~ DC18V DC5V is standard
  • Max Current: 15mA
  • Pulse duty factor: 50 %
  • Accuracy: 3%FS
  • High Level of Pulse Output: >4.5V (DC5V)
  • Low Level of Pulse Output: <0..5V (DC5V)
  • Max Pressure: 20Bar
  • Hall Component, made in Japan
